9.5. Functions in Assembly

In the last several sections, we traced through simple functions in assembly. In this section, we discuss the interaction between multiple functions in assembly in the context of a larger program. We also introduce some new instructions involved with function management.

Let’s begin with a refresher on how the call stack is managed. Recall that sp is the stack pointer and always points to the top of the stack. The register x29 represents the base pointer (also known as the frame pointer or FP) and points to the base of the current stack frame. The stack frame (also known as the activation frame or the activation record) refers to the portion of the stack allocated to a single function call. The currently executing function is always at the top of the stack, and its stack frame is referred to as the active frame. The active frame is bounded by the stack pointer (at the top of stack, lower address) and frame pointer (at the bottom of the frame, higher address). The activation record typically holds local variables for a function. Lastly, the return address indicates the program address at which the calling function (e.g. main()) resumes execution once the callee function exits. In A64 systems, the return address is stored in register x30 (also known as LR).

Figure 1 shows the stack frames for main() and a function it calls named fname(). Going forward, we will refer to the main() function as the caller function and fname() as the callee function.

an illustration of stack frames
Figure 1. Stack Frame Management

In Figure 1 the current active frame belongs to the callee function (or fname()). The region of the call stack between the stack and frame pointers are used for local variables. The stack pointer moves as local values are pushed onto and popped from the stack. The frame pointer is not commonly used in optimized codes, and is usually optional for operation. As a result, compilers like gcc commonly reference values on the stack relative to the stack pointer. In Figure 1, the active frame is bounded below by the base pointer of fname(), or x29, which contains stack address 0xef30. The value stored at address 0xef30 is the "saved" frame pointer value (0xef50) which itself indicates the bottom of the activation frame for the main() function. Right below the frame pointer is a saved return address (stored in x30), which indicates the address that the program will continue executing once main() exits.

The return address points to code memory not stack memory

Recall that the call stack region (stack memory) of a program is different from its code region (code memory). While sp and x29 point to addresses in the stack memory, pc points to an address in code memory. In other words, the return address is an address in code memory, not stack memory:

The parts of a program’s address space.
Figure 2. The parts of a program’s address space.

Table 1 contains several additional instructions that the compiler uses for basic function management:

Table 1. Common Function Management Instructions
Instruction Translation

bl addr <fname>

sets x30 = pc + 4 and sets pc = addr

blr R <fname>

sets x30 = pc + 4 and sets pc = R

ret

returns value in x0 and sets pc = x30

The bl and ret instructions play a prominent role in the process where one function calls another. Both instructions modify the instruction pointer (register pc). When the caller function executes the bl instruction, the value of pc + 4 is saved in register x30 to represent the return address, or the program address at which the caller resumes executing once the callee function finishes. The bl instruction also replaces the value of pc with the address of the callee function.

The ret instruction restores the value of pc to the value saved in x30, ensuring that the program resumes execution at the program address specified in the caller function. Any value returned by the callee is stored in register x0 or its component register w0. The ret instruction is usually the last instruction that executes in any function.

9.5.1. Function parameters

Function parameters are typically pre-loaded into registers prior to a function call. The first eight parameters to a function are stored in registers x0…​x7. If a function requires more than seven parameters, the remaining parameters are successively loaded into the call stack based on their size (4 byte offsets for 32-bit data, 8 byte offsets for 64-bit data).

9.5.2. Tracing through an Example

Using our knowledge of function management, let’s trace through the code example first introduced at the beginning of this chapter:

#include <stdio.h>

int assign() {
    int y = 40;
    return y;
}

int adder() {
    int a;
    return a + 2;
}

int main() {
    int x;
    assign();
    x = adder();
    printf("x is: %d\n", x);
    return 0;
}

We compile this code with the command gcc -o prog prog.c and use objdump -d to view the underlying assembly. The latter command outputs a pretty big file that contains a lot of information that we don’t need. Use less and the search functionality to extract the adder, assign, and main functions:

0000000000000724 <assign>:
 724:   d10043ff        sub     sp, sp, #0x10
 728:   52800500        mov     w0, #0x28                       // #40
 72c:   b9000fe0        str     w0, [sp, #12]
 730:   b9400fe0        ldr     w0, [sp, #12]
 734:   910043ff        add     sp, sp, #0x10
 738:   d65f03c0        ret

000000000000073c <adder>:
 73c:   d10043ff        sub     sp, sp, #0x10
 740:   b9400fe0        ldr     w0, [sp, #12]
 744:   11000800        add     w0, w0, #0x2
 748:   910043ff        add     sp, sp, #0x10
 74c:   d65f03c0        ret

0000000000000750 <main>:
 750:   a9be7bfd        stp     x29, x30, [sp, #-32]!
 754:   910003fd        mov     x29, sp
 758:   97fffff3        bl      724 <assign>
 75c:   97fffff8        bl      73c <adder>
 760:   b9001fa0        str     w0, [x29, #28]
 764:   90000000        adrp    x0, 0 <_init-0x598>
 768:   91208000        add     x0, x0, #0x820
 76c:   b9401fa1        ldr     w1, [x29, #28]
 770:   97ffffa8        bl      610 <printf@plt>
 774:   52800000        mov     w0, #0x0                        // #0
 778:   a8c27bfd        ldp     x29, x30, [sp], #32
 77c:   d65f03c0        ret

Each function begins with a symbolic label that corresponds to its declared name in the program. For example, <main>: is the symbolic label for the main() function. The address of a function label is also the address of the first instruction in that function. To save space in the figures below, we truncate code addresses to the lower 12 bits, and stack addresses to the lower 16 bits. So, stack address 0xffffffffef50 is shown as 0xef50.

9.5.3. Tracing through main

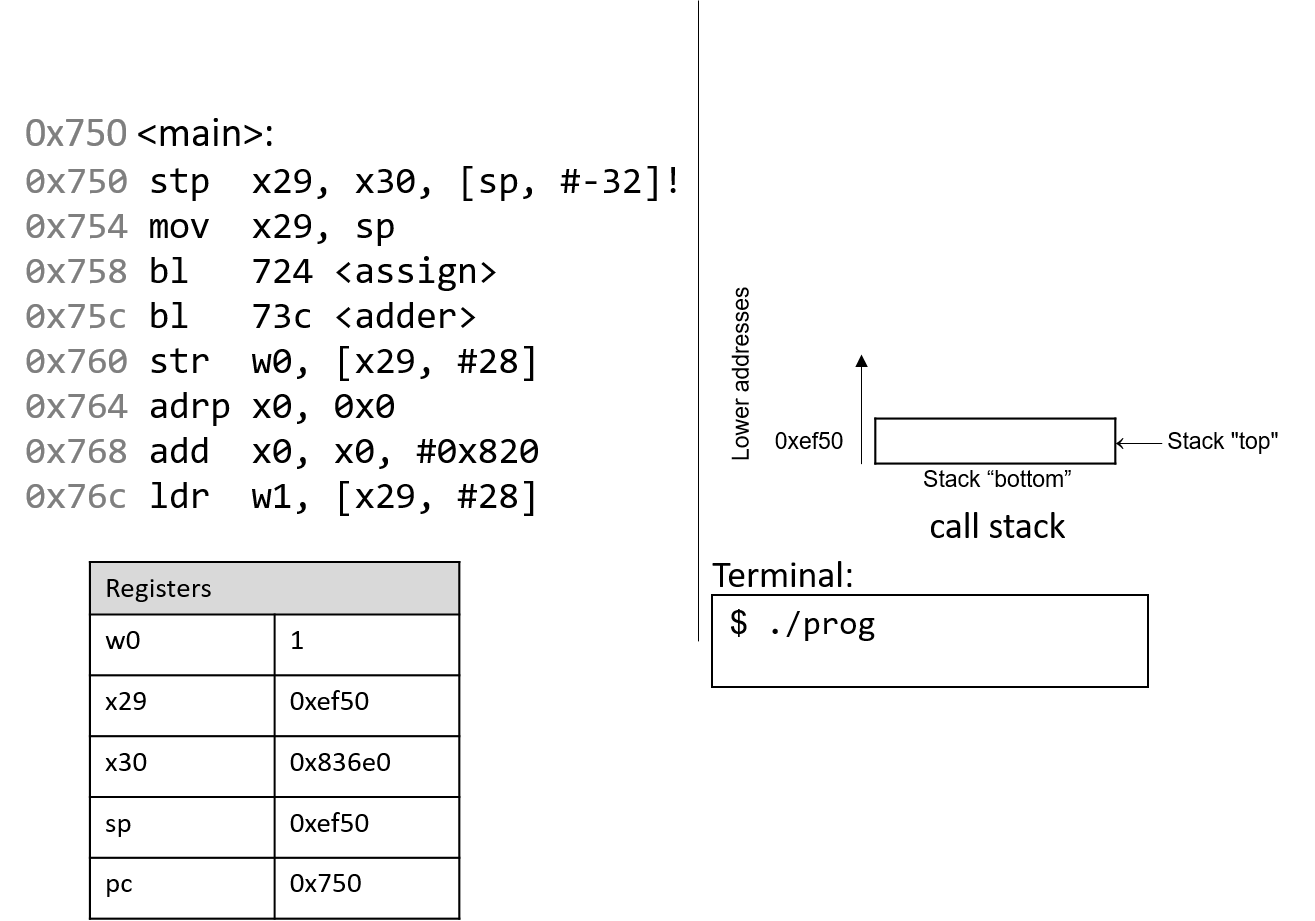

Figure 3 shows the execution stack immediately prior to the execution of main():

slide1
Figure 3. The initial state of the CPU registers and call stack prior to executing the main function.

Recall that the stack grows toward lower addresses. In this example, the frame and stack pointers (x29 and sp) both contain address 0xef50. Initially, pc points to the first instruction in the main() function, or 0x750. Register x30 and w0 are also highlighted in this example, and both contain initial junk values.


slide2

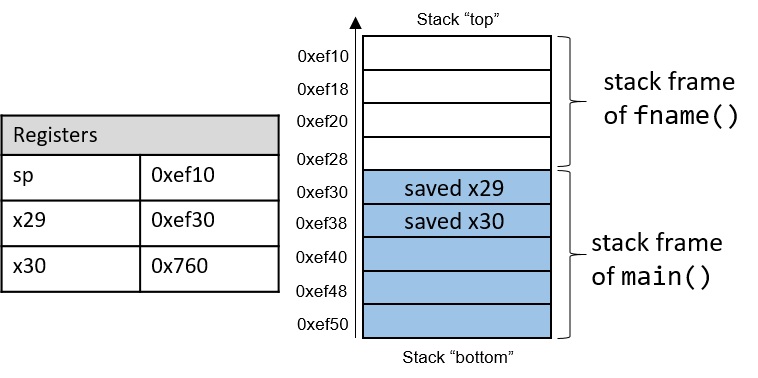

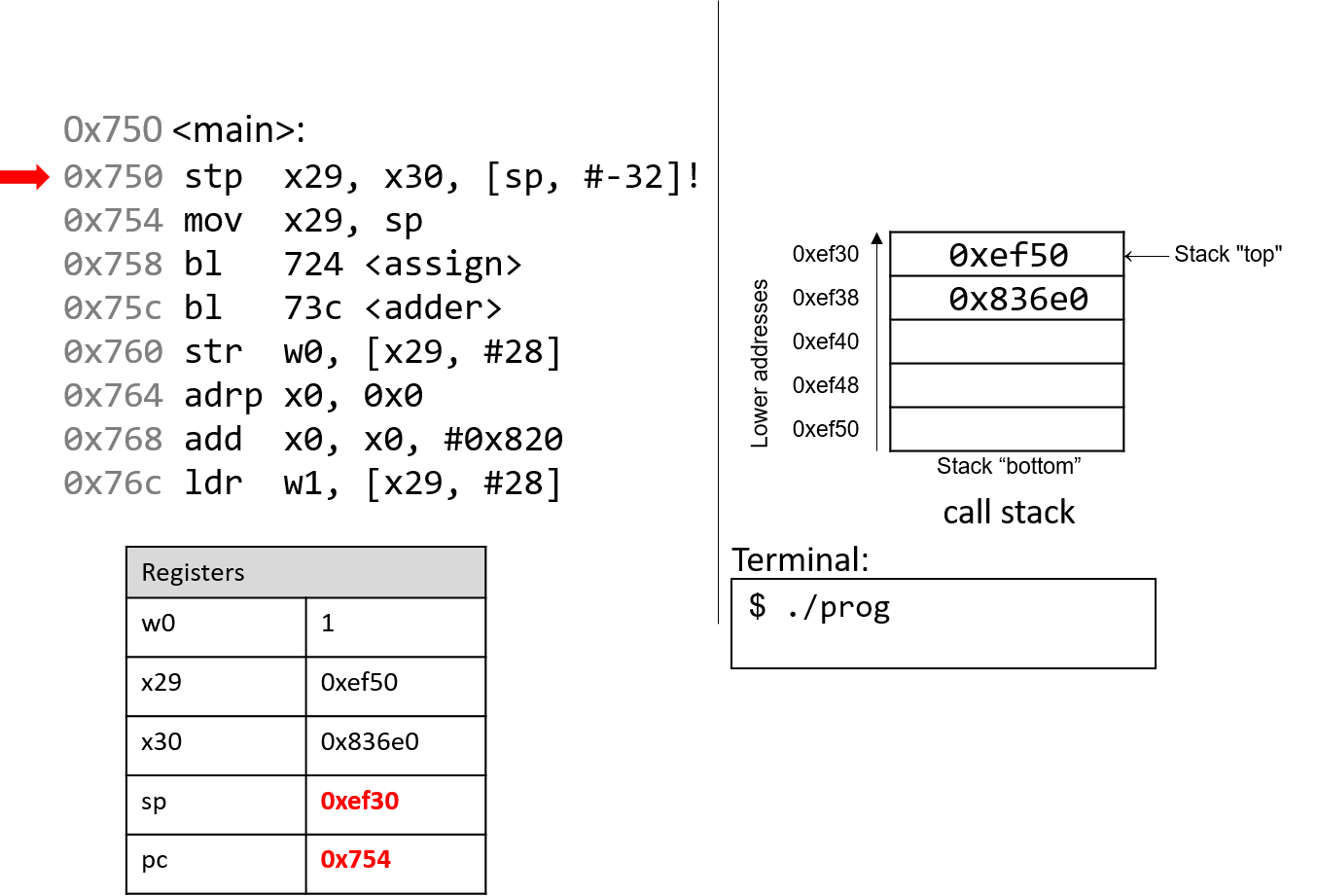

The first instruction (stp) is a composite instruction with two parts. First, the second operand ([sp, #-32]!) decrements the stack pointer by 32 bytes, thus allocating space for the current stack frame. After the evaluation of the operand, the stack pointer updates to 0xef30. Next, the stp instruction stores the current values of x29 and x30 at locations sp and sp+8 respectively. The instruction pointer pc advances to the next instruction in sequence.


slide3

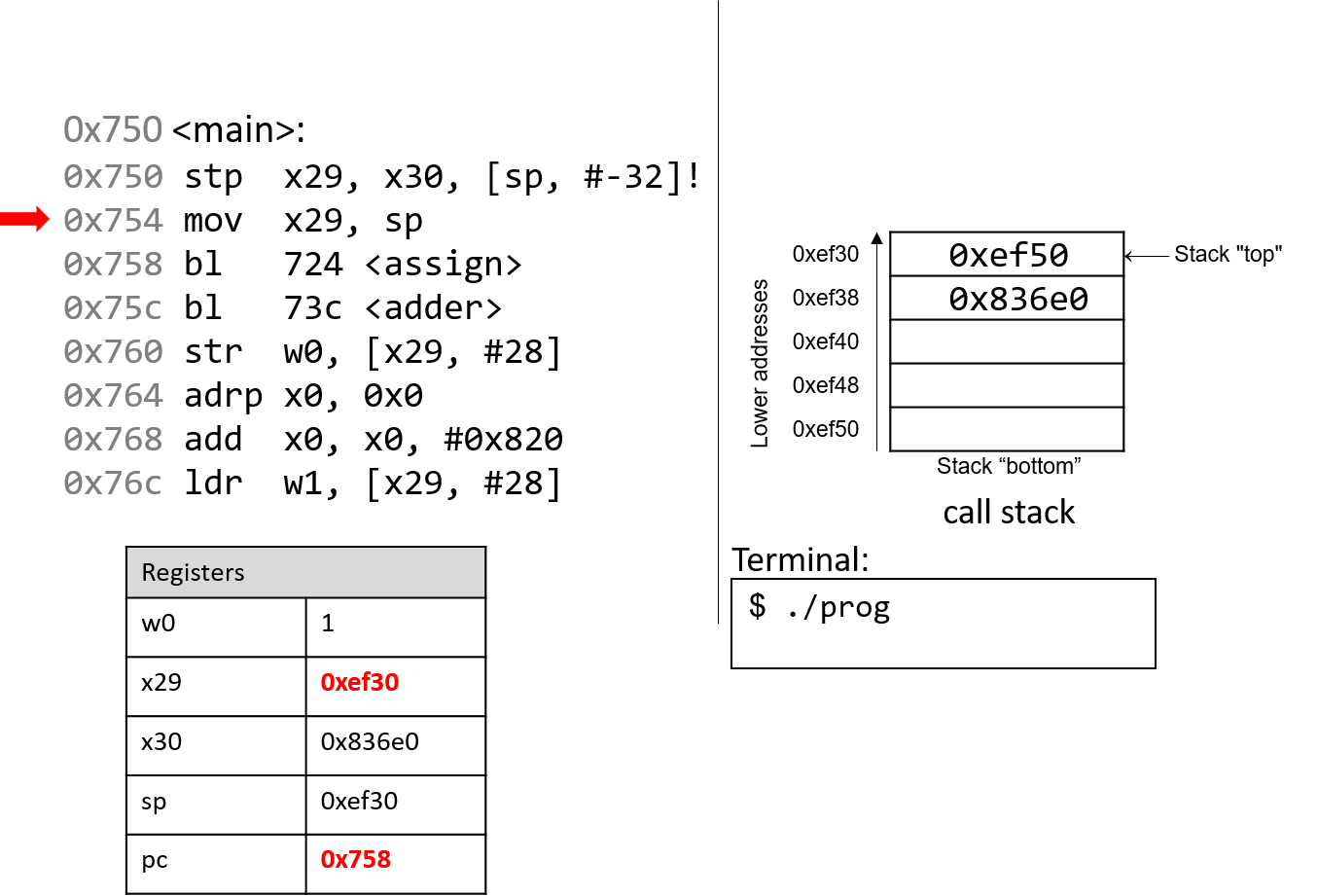

The next instruction (mov x29, sp) updates the value of x29 to be the same as sp. Thus, the frame pointer (x29) now points to the start of the stack frame for the main() function. The instruction pointer pc advances to the next instruction in sequence.


slide4

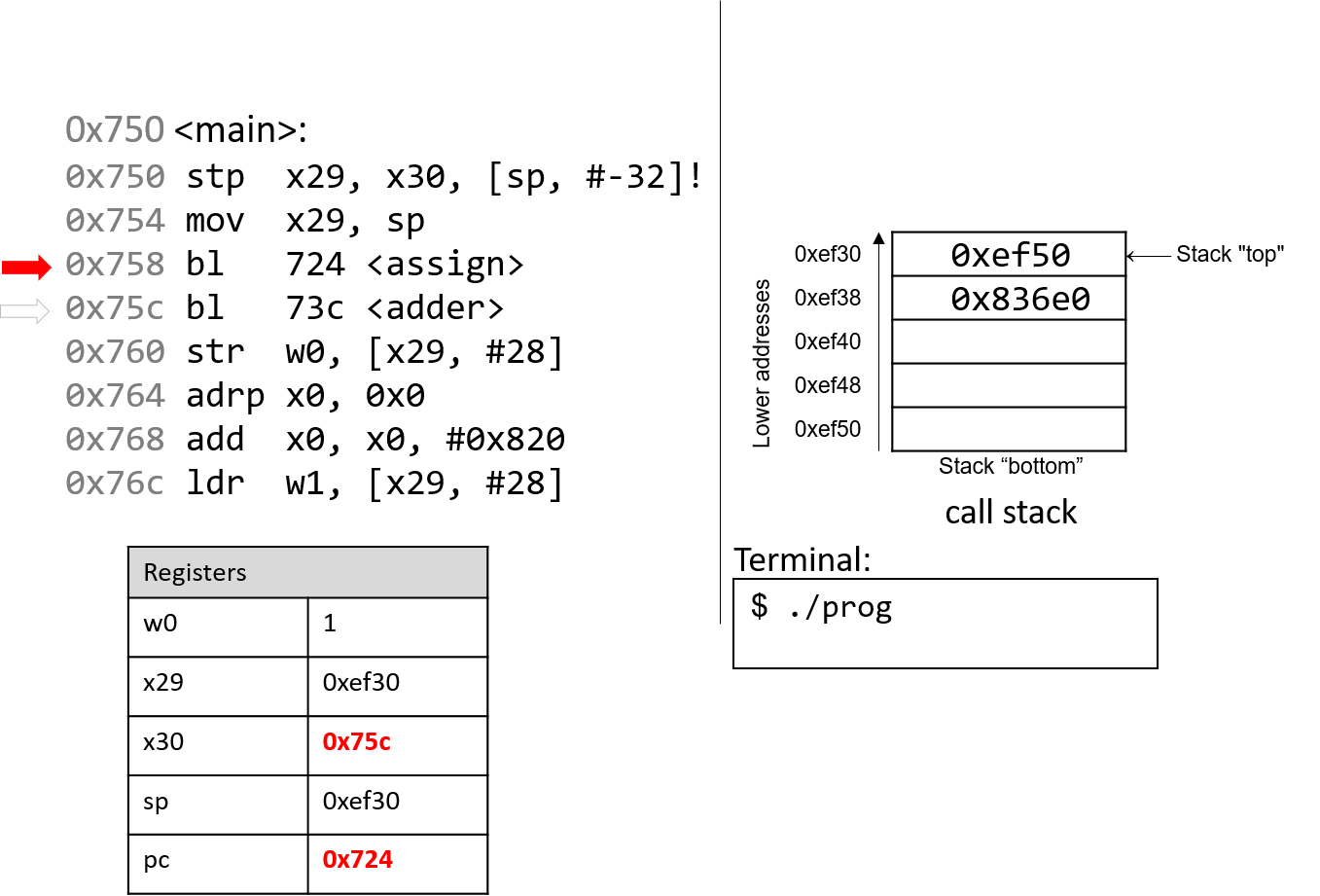

The first bl instruction stores pc+4 (or 0x75c) in register x30, which is the address in main() that the program will resume executing at once the assign() function returns. Next, the register pc is updated with address 0x724, which indicates the address of the first instruction in the assign() function.


slide5

The next instruction that executes is the first instruction in assign(). The sub instruction decrements the stack pointer by 16 bytes. Note that x29 and sp now denote the active stack frame boundaries for the assign() function. The program counter advances to the next instruction.


slide6

The mov instruction stores the constant values 0x28 in register w0. Register pc advances to the next instruction in sequence.


slide7

The str instruction stores 0x28 at an offset of 12 bytes from the stack pointer, or at address 0xef2c. The instruction pointer advances to the next instruction.


slide8

The ldr instruction stores then saves 0x28 from stack address 0xef2c in register w0. The instruction pointer advances to the next instruction.


slide9

The add instruction deallocates the current stack frame and reverts sp to its previous value, or 0xef30.


slide10

The ret instruction replaces the value in pc with the value in x30, or 0x75c. As a result, program execution returns to the first instruction in the main() function immediately after the call to assign().


slide11

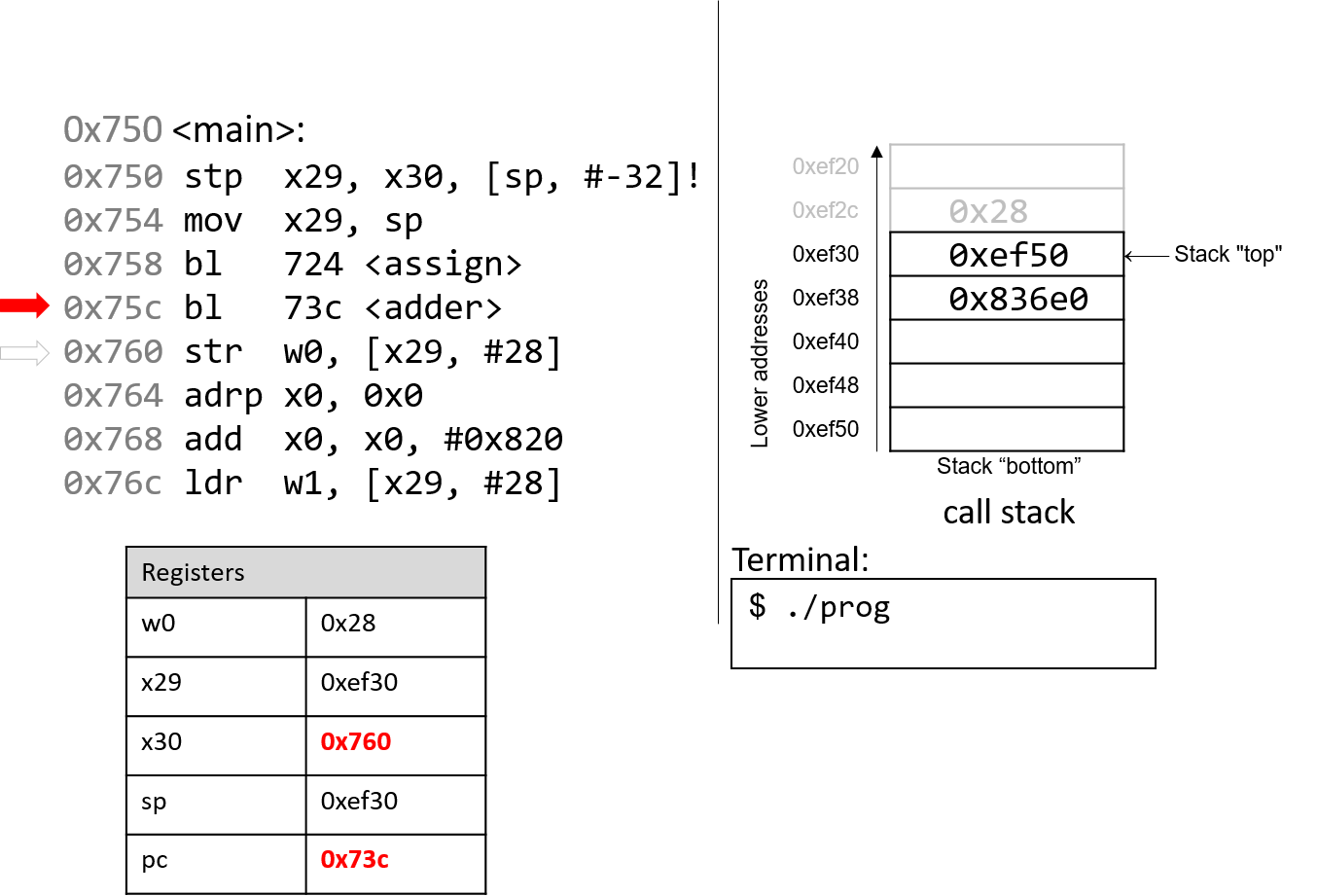

The next instruction that executes is a function call to adder() (or bl 73c <adder>). Therefore, register x30 is updated with pc+4, or 0x760. The program counter is replaced with address 0x73c, signifying that program execution continues into the adder() function.


slide12

The first instruction in the adder() function decrements the stack pointer by 16 bytes, allocating the new stack frame for the the adder() function. Note that the active stack frame boundaries for the adder() function are designated by registers sp and x29. The instruction pointer advances to the next instruction in sequence.


slide13

What happens next is very crucial. The ldr instruction loads an old value from the stack (at sp+12) into register w0. This is a direct result of the fact that the programmer forgot to initialize a in the adder() function. The instruction pointer advances to the next instruction in sequence.


slide14

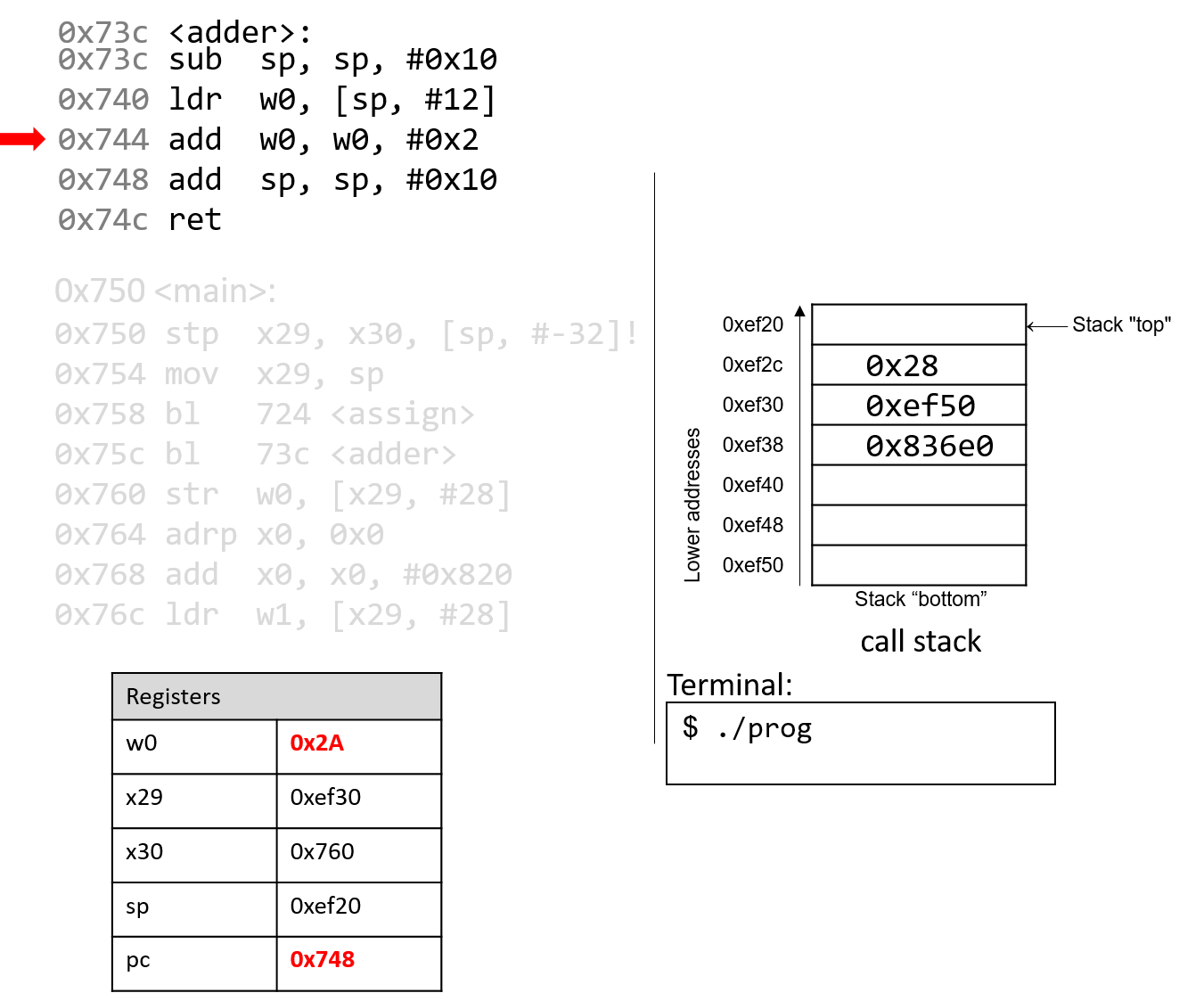

The add instruction then adds 0x2 the value in w0 and stores the result (0x2A) in register w0. The instruction pointer advances to the next instruction in sequence.


slide15

The next add instruction increments the stack pointer by 16 bytes, thus destroying the active frame for adder() and restoring sp to its previous value. The instruction pointer advances to the next instruction in sequence.


slide16

Finally, the ret instruction overwrites pc with the address in register x30, indicating that program execution should continue in the main() function at code segment address 0x760.


slide20

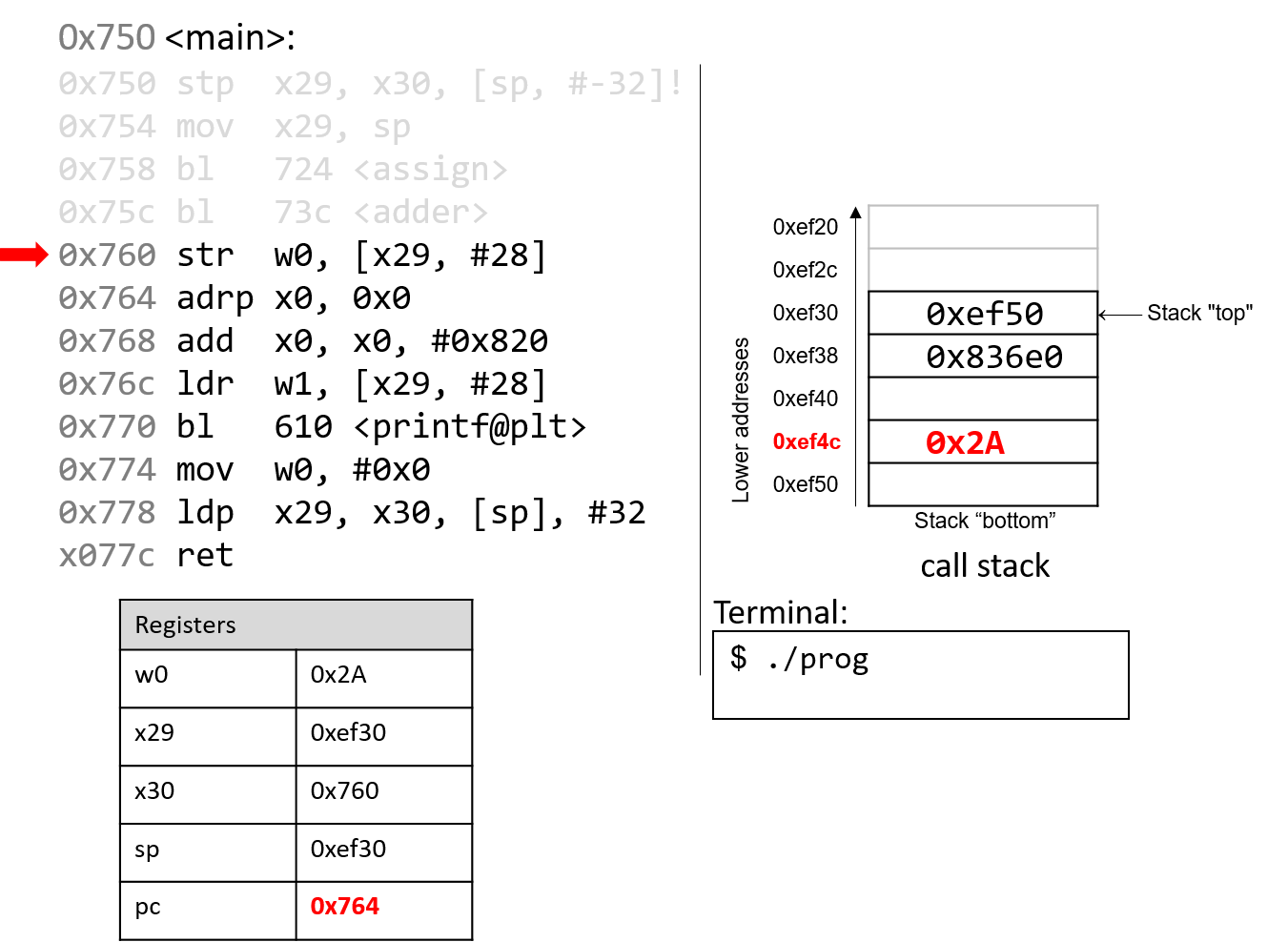

Back in the main() function, the str instruction at program address 0x760 stores the contents of the w0 register (0x2A) at a call stack location that is 28 bytes from the frame pointer (x29). Therefore, 0x2A is stored at stack address 0xef4c.


slide18

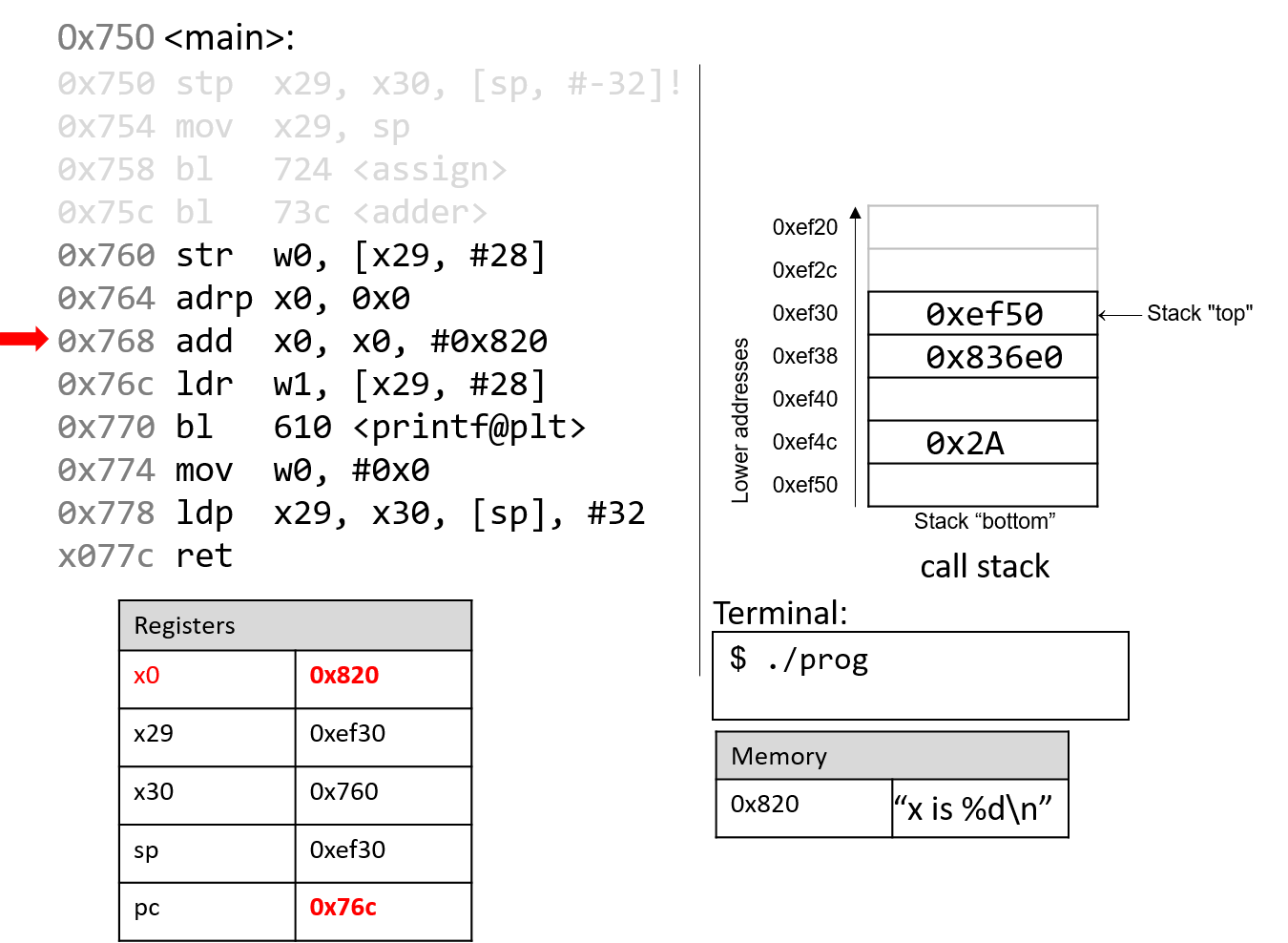

The next two instructions together load an address of a page into register x0. Since addresses are 8 bytes long, the 64-bit register x0 is used, instead of its 32-bit component w0. The adrp loads the address (0x0) into register x0, while the add instruction at code segment address 0x768 adds the value 0x820 to it. At the end of these two instructions, register x0 contains memory address 0x820. Note that the value stored at address 0x820 is the string "x is %d\n".


slide20

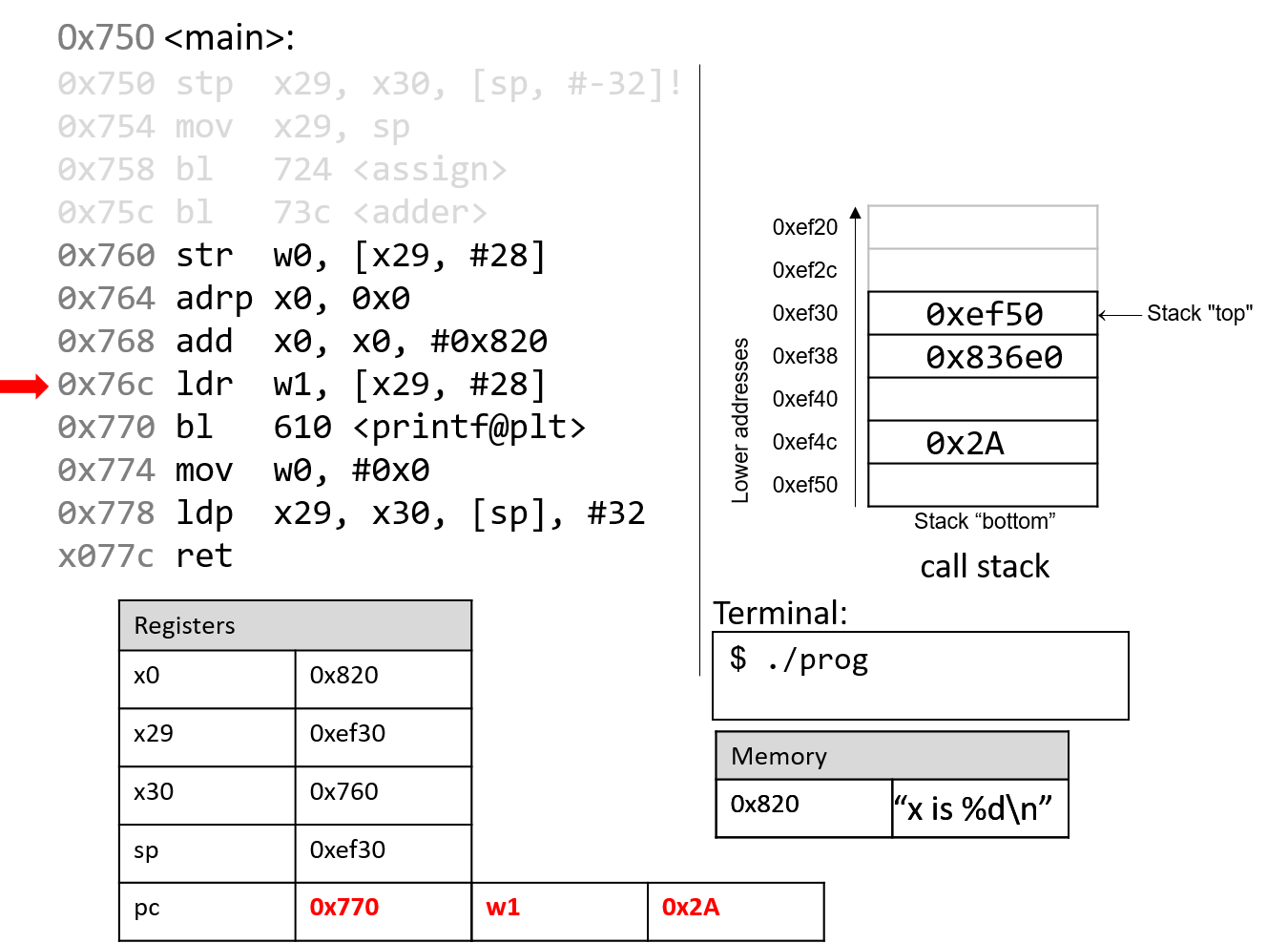

Next, the ldr instruction at program address 0x76c loads 0x2A (which is located at an offset of 28 bytes from the frame pointer) into register w1.


slide21

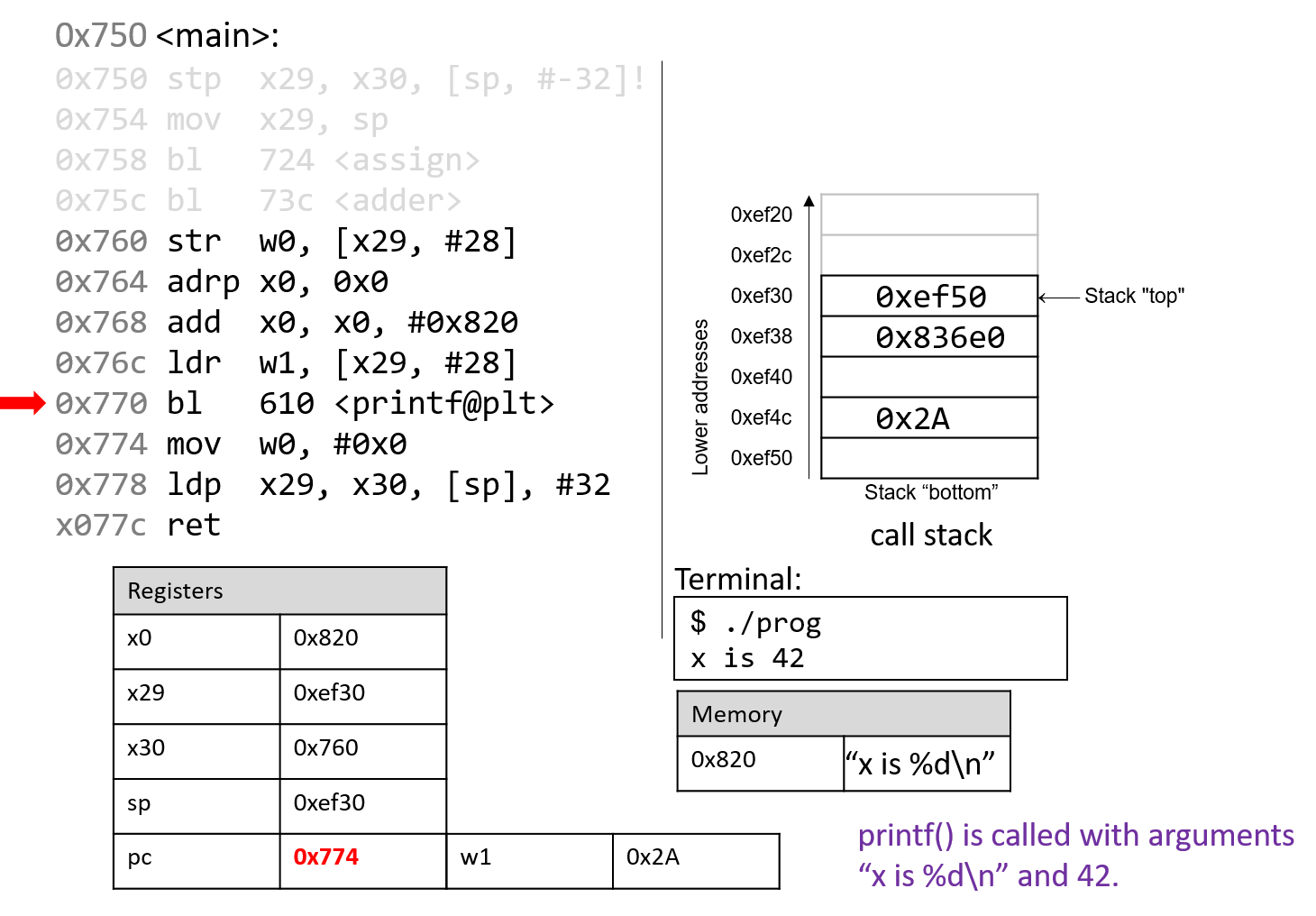

The next instruction calls the printf() function. For the sake of brevity, we will not trace the printf() function, which is part of stdio.h. However, we know from the manual page (man -s3 printf) that printf() has the following format:

int printf(const char * format, ...)

In other words, the first argument is a pointer to a string specifying the format, and the second argument onwards specify the values that are used in that format. The instructions specified by addresses 0x764 - 0x770 correspond to the following line in the main() function:

printf("x is %d\n", x);

When the printf() function is called:

  • The return address (pc+4 or 0x774) is stored in register x30.

  • Register pc switches address 0x610, which is the start of the printf() function.

  • Register sp is updated to reflect the new stack frame for the printf() function.

At some point, printf() references its arguments, which are string "x is %d\n" and value 0x2A. Recall that for any function with n arguments, gcc places the first eight arguments in registers x0-x7, and the remaining arguments onto the stack below the frame pointer. In this case, the first parameter is stored in register x0 (since it an address to a string), and the second parameter is stored in component register w1.

After the call to printf(), the value 0x2A is outputted to the user in integer format. Thus, the value 42 is printed to the screen. The stack pointer reverts to its previous value, and pc updates to the value stored in register x30, or 0x774.


slide23

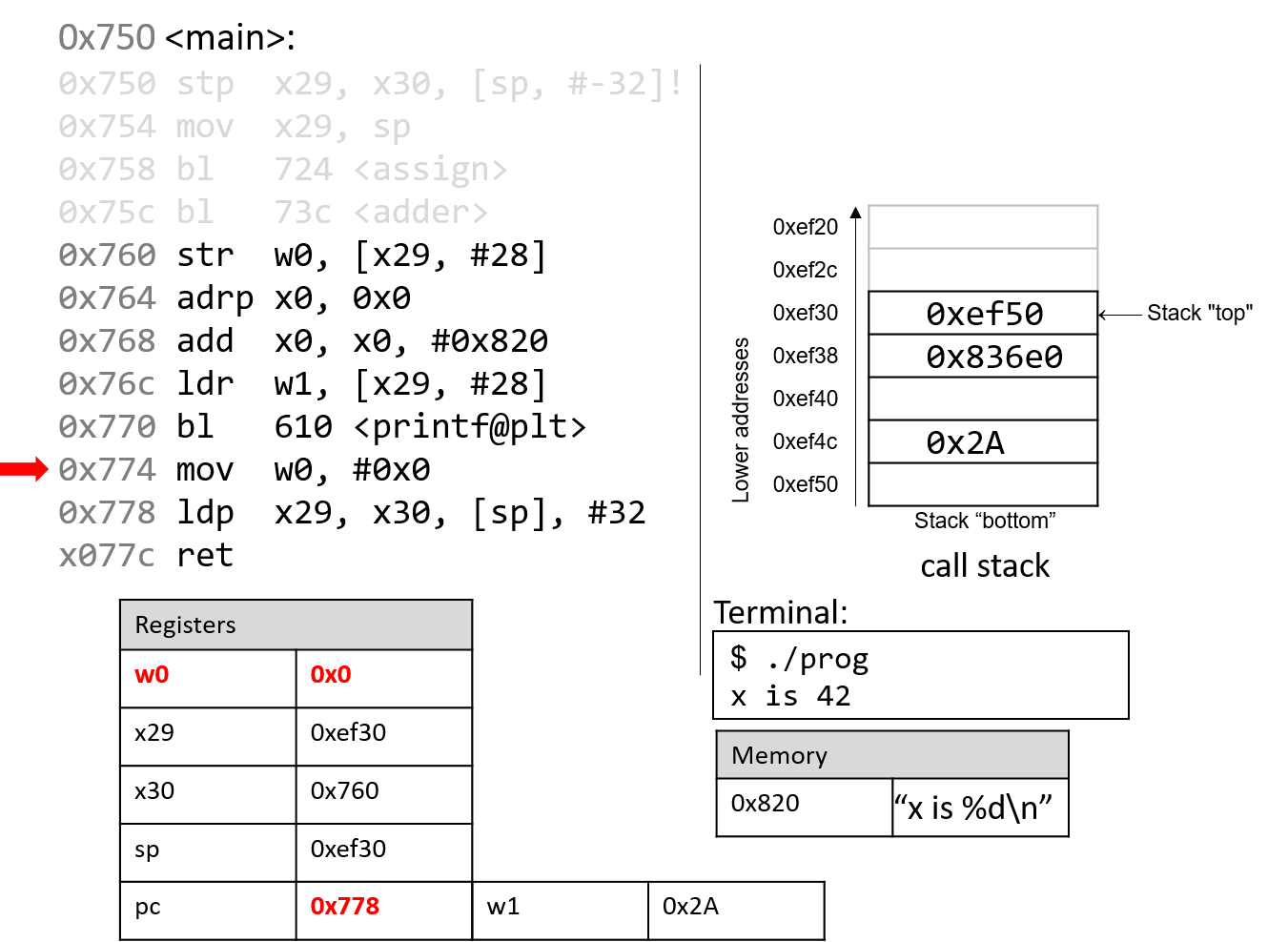

The mov instructions at address 0x774 loads the constant value #0x0 into component register w0. This represents the value that will be returned when main() completes execution. The program counter advances to the next instruction in sequence.


slide24

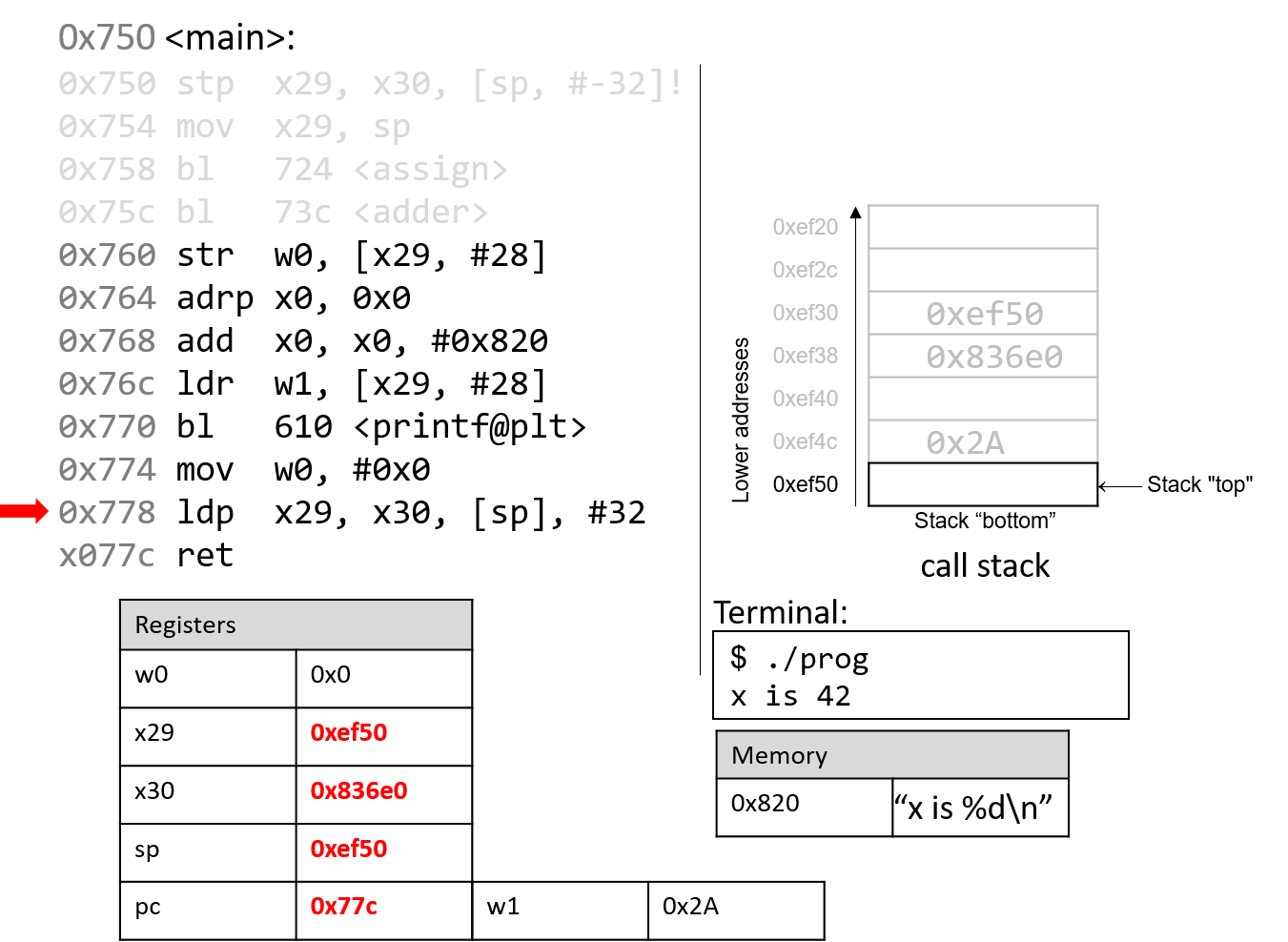

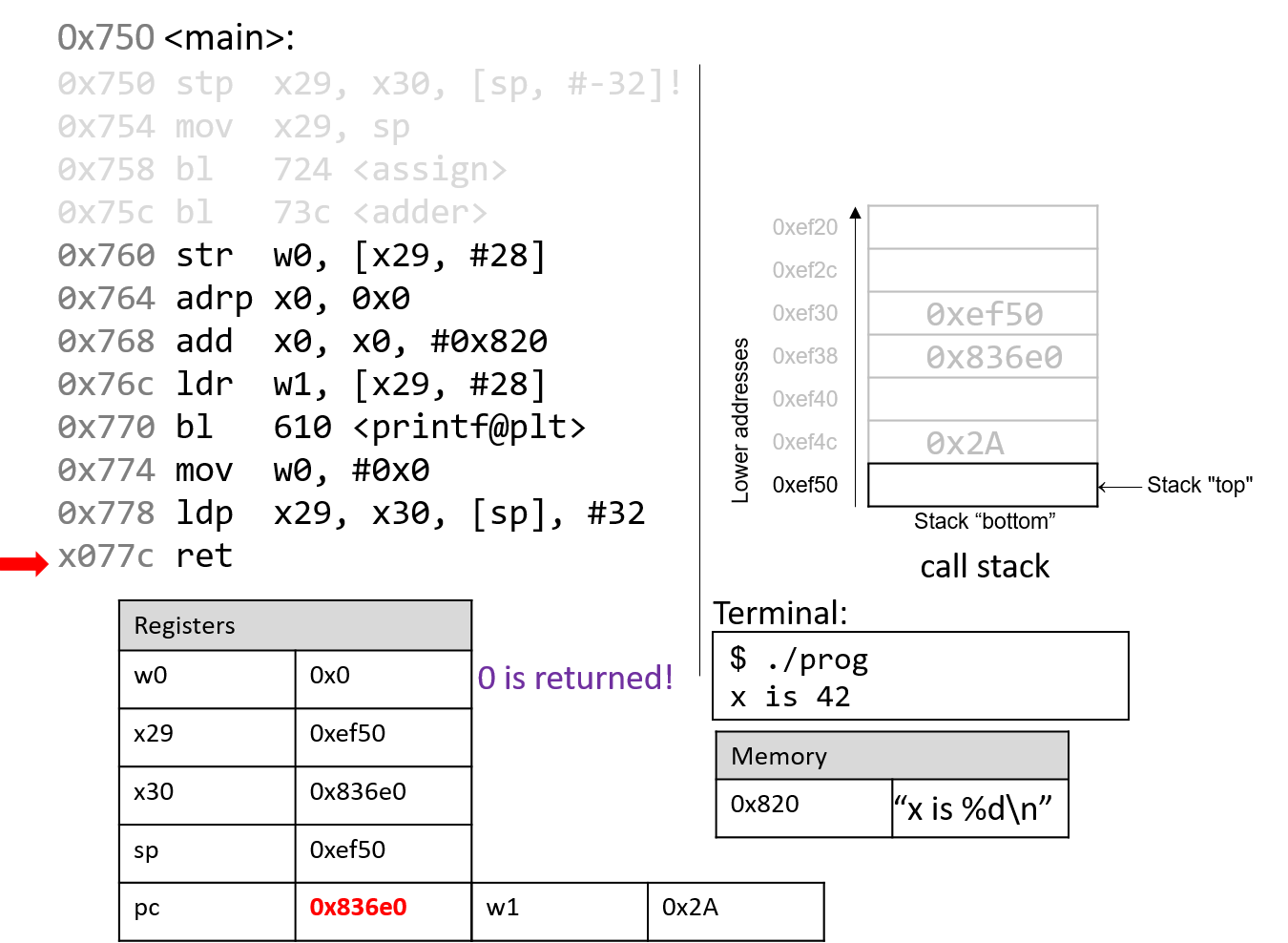

The ldp instruction at program address 0x778 first copies the values at sp and sp+8 into registers x29 and x30, reverting them to their original values prior to the start of the execution of the main() function. The last part of the ldp instruction (as specified by the operand [sp], #32) increments the stack pointer by 32 bytes, restoring sp to its original value prior to the execution of main(). Thus, when the ldp instruction completes execution, the stack pointer (sp), frame pointer (x29), and return register (x30) all have returned to their original values. The program counter advances to the last instruction in the main() function.


slide25

The last instruction that executes is ret. With 0x0 in the return register w0, the program returns 0, indicating correct termination.

If you have carefully read through this section, you should understand why our program prints out the value 42. In essence, the program inadvertently uses old values on the stack to cause it to behave in a way that we didn’t expect. While this example was pretty harmless, we discuss in future sections how hackers have misused function calls to make programs misbehave in truly malicious ways.
