7.2. Common Instructions

In this section, we discuss several common assembly instructions. Table 1 lists the most foundational instructions in x86 assembly:

Table 1. Most Common Instructions
Instruction Translation

mov S, D

S → D (i.e, copies value of S into D)

add S, D

S + D → D (adds S+D and stores result in D)

sub S, D

D - S → D (subtracts S from D and stores result in D)

Therefore, the sequence of instructions:

mov    -0x4(%rbp),%eax
add    $0x2,%eax

Translate to:

  • Copy the value at location %rbp + -0x4 in memory (M[%rbp - 0x4]) to register %eax.

  • Add the value $0x2 to register %eax, and store the result in register %eax.

The three instructions shown in Table 1 also form the building blocks for instructions that maintain the organization of the program stack (i.e. the call stack). Recall that registers %rbp and %rsp refer to the frame pointer and stack pointer respectively and are reserved by the compiler for call stack management. Recall from our earlier discussion on program memory that the call stack typically stores local variables and parameters and helps the program track its own execution (see Figure 1). On x86-64 systems, the execution stack grows toward lower addresses. Like all stack data structures, operations occur at the "top" of the stack.

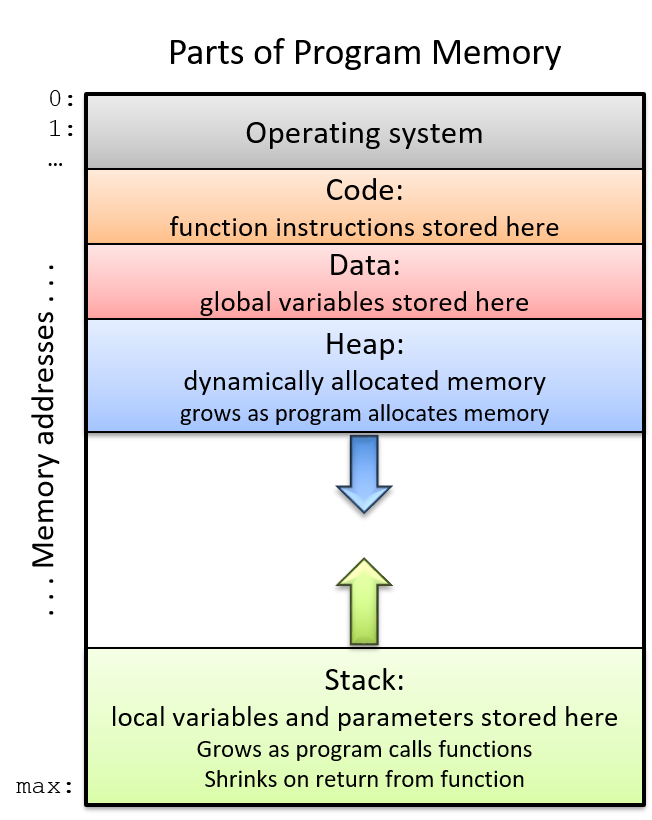

The parts of a program’s address space.
Figure 1. The parts of a program’s address space.

The x86-64 ISA provides two instructions (Table 2) to simplify call stack management:

Table 2. Stack management instructions

Instruction

Translation

push S

pushes a copy of S onto the top of the stack. Equivalent to:

sub $0x8, %rsp
mov S, (%rsp)

pop D

pops the top element off the stack and places it in location D. Equivalent to:

mov (%rsp), D
add $0x8, %rsp

Notice that while the three instructions in Table 1 require two operands, the push and pop instructions in Table 2 require only one operand apiece.

7.2.1. Putting it all together: a more concrete example

Let’s take a closer look at the adder2() function:

//adds two to an integer and returns the result
int adder2(int a) {
    return a + 2;
}

and its corresponding assembly code:

0000000000400526 <adder2>:
  400526:       55                      push   %rbp
  400527:       48 89 e5                mov    %rsp,%rbp
  40052a:       89 7d fc                mov    %edi,-0x4(%rbp)
  40052d:       8b 45 fc                mov    -0x4(%rbp),%eax
  400530:       83 c0 02                add    $0x2,%eax
  400533:       5d                      pop    %rbp
  400534:       c3                      retq

The assembly code consists of a push instruction, followed by three mov instructions, an add instruction, a pop instruction, and finally a retq instruction. To understand how the CPU executes this set of instructions, we need to revisit the structure of program memory. Recall that every time a program executes, the operating system allocates the new program’s address space (also known as virtual memory). Virtual memory and the related concept of processes are covered in greater detail in chapter 13; for now, it suffices to think of processes as the abstraction of a running program and virtual memory as the memory that is allocated to a single process. Every process has its own region of memory called the call stack. Keep in mind that the call stack is located in process/virtual memory, unlike registers (which are located on the CPU).

Figure 2 depicts a sample state of the call stack and registers prior to the execution of the adder2() function.

frame1
Figure 2. Execution Stack Prior to Execution

Notice that the stack grows toward lower addresses. Registers %eax contains a junk value. The single parameter to the adder2() function (a) is stored in register %rdi by convention. Since a is of type int, it is stored in component register %edi, which is shown in the figure above. Likewise, since the adder2() function returns an int, component register %eax is used for the return value instead of %rax.

The addresses associated with the instructions in the code segment of program memory (0x400526-0x400534) have been shortened to (0x526-0x534) to improve figure readability. Likewise, the addresses associated with the call stack segment of program memory have been shortened to 0xd28-0xd1c from a range of 0x7fffffffdd28 - 0x7fffffffdd1c for figure readability. In truth, call stack addresses occur at much higher addresses in program memory than code segment addresses.

Pay close attention to the initial values of registers %rsp and %rbp: they are 0xd28 and 0xd40 respectively. The arrow visually indicates the currently executing instruction. The %rip register (or instruction pointer) shows the next instruction to execute. Initially, %rip contains address 0x526 which corresponds to the first instruction in the adder2() function.


frame2

The first instruction (push %rbp) places a copy of %rbp (or 0xd40) on top of the stack. After it executes, the %rip register advances to the address of the next instruction to execute (0x527). The push instruction decrements the stack pointer by 8 ("growing" the stack by 8 bytes), resulting in a new %rsp value of 0xd20. Recall that the push %rbp instruction is equivalent to:

sub $8, %rsp
mov %rbp, (%rsp)

In other words, subtract 8 from the stack pointer and place a copy of the contents of %rbp in the location pointed to by the dereferenced stack pointer (e.g. (%rsp)).


frame3

Recall that the structure of the mov instruction is mov S,D where S is the source location and D is the destination. Thus, the next instruction (mov %rsp, %rbp) updates the value of %rbp to 0xd20. The register %rip advances to the address of the next instruction to execute, or 0x52a.


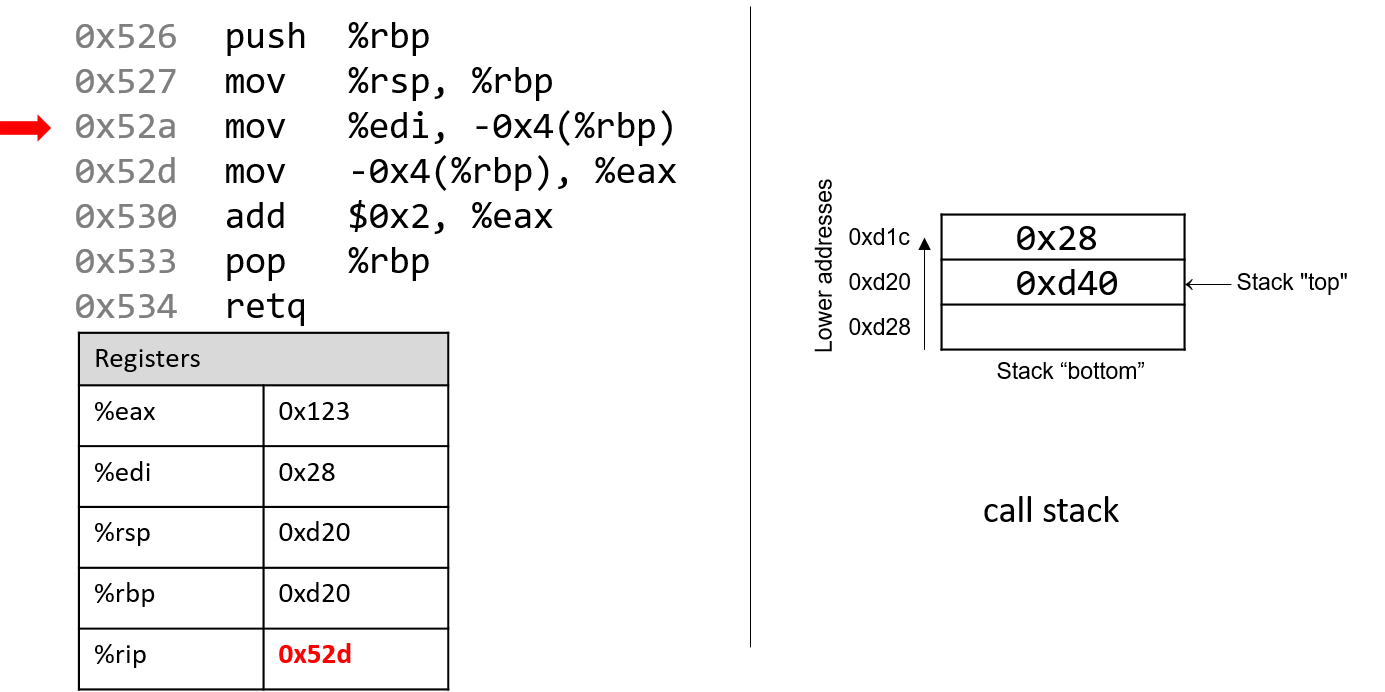

frame4

Next, mov %edi, -0x4(%rbp) is executed. This is a bit more complicated than the last mov instruction. Let’s parse it piece by piece. First, recall that the first parameter to any function is stored in register %rdi. Since a is of type int, the compiler stores the first parameter in component register %edi. Next, the operand -0x4(%rbp) translates to M[%rbp - 0x4]. Since %rbp contains the value 0xd20, subtracting 4 from it yields 0xd1c. Therefore, the mov instruction copies the value of register %edi (or 0x28) to location 0xd1c on the stack. The instruction pointer advances to address 0x52d, the next address to be executed.

Note that storing the value 0x28 does not impact the stack pointer (%rsp). Therefore, as far as the program is concerned, the "top" of this stack is still address 0xd20.


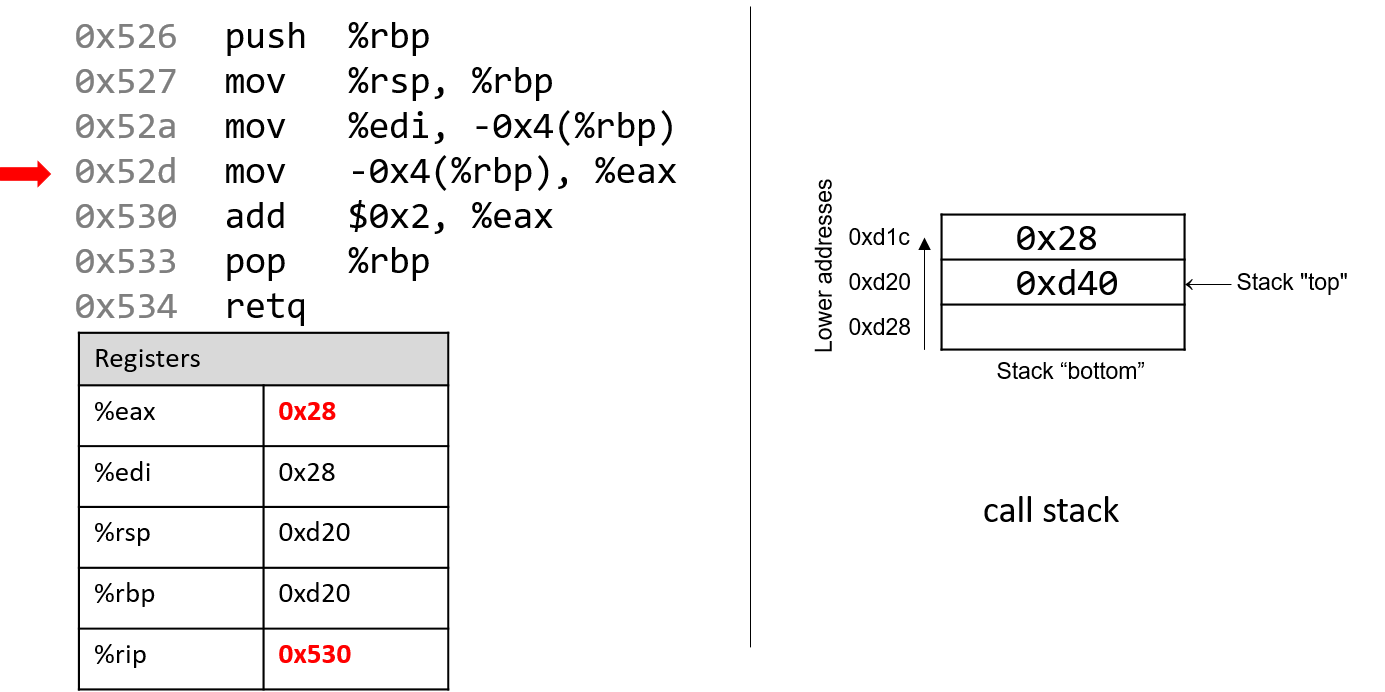

frame5

The next mov instruction (mov -0x4(%rbp), %eax) copies the value at stack location 0xd1c (i.e. M[%rbp - 0x4] or 0x28) and stores it in register %eax. Register %rip advances to the next instruction to be executed, or 0x530.


frame6

Next, add $0x2, %eax is executed. Recall that the add instruction has the form add S,D and places the quantity S + D in the destination D. So, add $0x2, %eax adds the constant value $0x2 to the value stored in %eax (or 0x28), resulting in the value 0x2A being stored in register %eax. Register %eip advances to point to the next instruction to be executed, or 0x533.


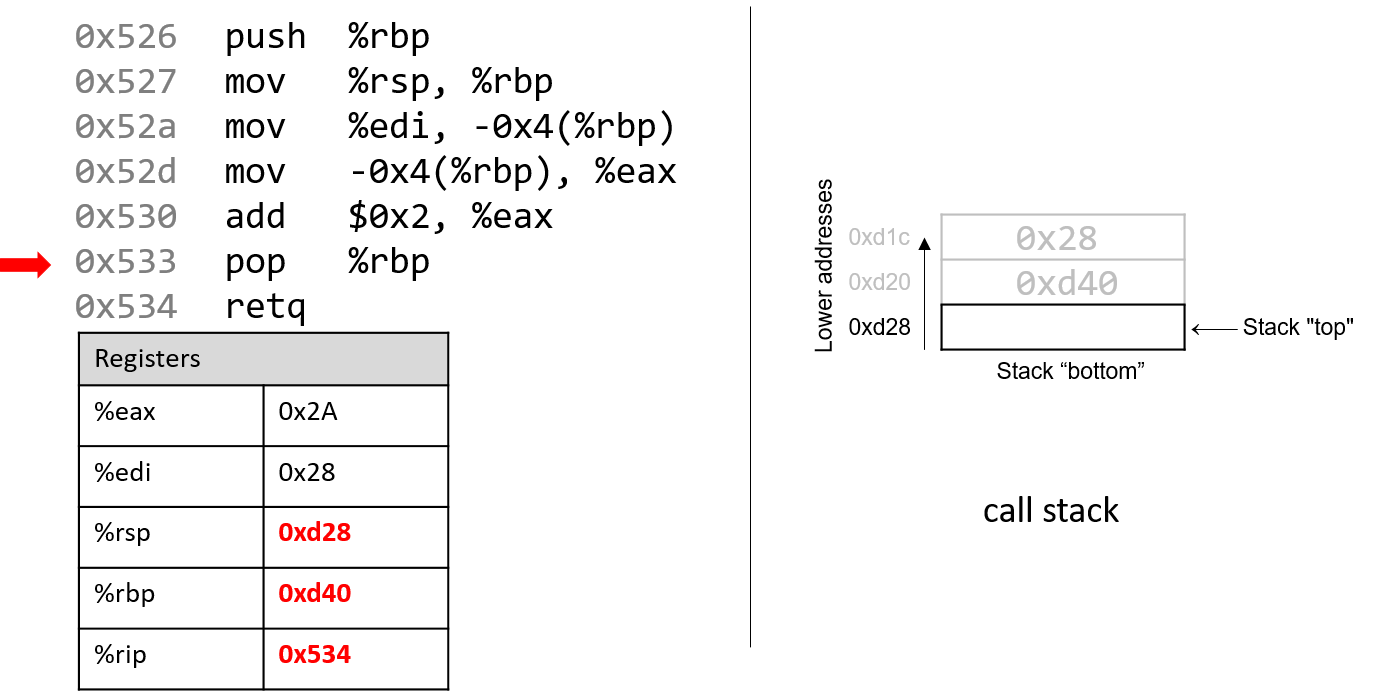

frame7

The next instruction that executes is pop %rbp. This instruction "pops" the value off of the top of the call stack and places it in destination register %rbp. Recall that this instruction is equivalent to the following sequence of two instructions:

mov (%rsp), %rbp
add $8, %rsp

Recall that the top of the stack is 0xd20, since that is the value stored in %rsp. Therefore, once this instruction executes, the value (%rsp) (i.e M[0xd20]) is copied into register %rbp. Thus %rbp now contains the value 0xd40. The stack pointer increments by 8, since the stack grows towards lower addresses (and consequently, shrinks toward higher ones). The new value of %rsp is 0xd28, and %rip now points to the address of the last instruction to execute in this code snippet (i.e. 0x534).

The last instruction executed is retq. We will talk more about what happens with retq in future sections when we discuss function calls, but for now it suffices to know that it prepares the call stack for returning from a function. By convention, the register %rax always contains the return value (if one exists). In this case, since adder2() is of type int, the return value is stored in component register %eax and the function returns the value 0x2A, or 42.

Before we continue, note that the end values of registers %rsp and %rbp are 0xd28 and 0xd40 respectively, which are the same values as when the function started executing! This is normal and expected behavior with the call stack. The purpose of the call stack is to store the temporary variables and data of each function as it executes in the context of a program. Once a function completes executing, the stack returns to the state it was prior to the function call. As a result, it is common to see the following two instructions at the beginning of a function:

push %rbp
mov %rsp, %rbp

and the following two instructions at the end of a function:

pop %rbp
retq
