7.5. Functions in Assembly

In the last several sections, we traced through simple functions in assembly. In this section, we discuss the interaction between multiple functions in assembly in the context of a larger program. We also introduce some new instructions involved with function management.

Let’s begin with a refresher on how the call stack is managed. Recall that %rsp is the stack pointer and always points to the top of the stack. The register %rbp represents the base pointer (also known as the frame pointer) and points to the base of the current stack frame. The stack frame (also known as the activation frame or the activation record) refers to the portion of the stack allocated to a single function call. The currently executing function is always at the top of the stack, and its stack frame is referred to as the active frame. The active frame is bounded by the stack pointer (at the top of stack) and frame pointer (at the bottom of the frame). The activation record typically holds local variables for a function.

Figure 1 shows the stack frames for main() and a function it calls named fname(). Going forward, we will refer to the main() function as the caller function and fname() as the callee function.

an illustration of stack frames
Figure 1. Stack Frame Management

In Figure 1 the current active frame belongs to the callee function (fname()). The memory between the stack pointer and frame pointer are used for local variables. The stack pointer moves as local values are pushed and popped from the stack. In contrast, the frame pointer remains relatively constant, pointing to the beginning (e.g. bottom) of the current stack frame. As a result, compilers like gcc commonly reference values on the stack relative to the frame pointer. In Figure 1, the active frame is bounded below by the base pointer of fname() which is stack address 0x418. The value stored at address 0x418 is the "saved" %rbp value (0x42c) which itself is an address that indicates the bottom of the activation frame for the main() function. The top of the activation frame of main() is bounded by the return address, which indicates where in the main() function program execution resumes once the callee function fname() finishes executing.

The return address points to code segment memory not stack memory

Recall that the call stack region (stack memory) of a program is different from its code region (code segment memory). While %rbp and %rsp point to addresses in the stack memory, %rip points to the address in code segment memory. In other words, the return address is an address in code segment memory, not stack memory:

The parts of a program’s address space.
Figure 2. The parts of a program’s address space.

Table 1 contains several additional instructions that the compiler uses for basic function management:

Table 1. Common Function Management Instructions
Instruction Translation


prepares the stack for leaving a function. Equivalent to:

mov %rbp, %rsp
pop %rbp

callq addr <fname>

switches active frame to callee function. Equivalent to:

push %rip
mov addr, %rip


restores active frame to caller function. Equivalent to:

pop %rip

For example, the leaveq instruction is a shorthand that the compiler uses to restore the stack and frame pointers as it prepares to leave a function. When the callee function finishes execution, leaveq ensures that the frame pointer is restored to its previous value.

The callq and retq instructions play a prominent role in the process where one function calls another. Both instructions modify the instruction pointer (register %rip). When the caller function executes the callq instruction, the current value of %rip is saved on the stack to represent the return address, or the program address at which the caller resumes executing once the callee function finishes. The callq instruction also replaces the value of %rip with the address of the callee function.

The retq instruction restores the value of %rip to the value saved on the stack, ensuring that the program resumes execution at the program address specified in the caller function. Any value returned by the callee is stored in %rax or one of its component registers (e.g. %eax). The retq instruction is usually the last instruction that executes in any function.

7.5.1. Function parameters

Unlike IA32, function parameters are typically pre-loaded into registers prior to a function call. Table 2 list the parameters to a function and the register (if any) that they are loaded into prior to a function call:

Table 2. Locations of function parameters.
Parameter Location

Parameter 1


Parameter 2


Parameter 3


Parameter 4


Parameter 5


Parameter 6


Parameter 7+

on call stack

The first six parameters to a function are loaded into registers %rdi, %rsi, %rdx, %rcx, %r8, and %r9 respectively. Any additional parameters are successively loaded into the call stack based on their size (4 byte offsets for 32-bit data, 8 byte offsets for 64-bit data).

7.5.2. Tracing through an Example

Using our knowledge of function management, let’s trace through the code example first introduced at the beginning of this chapter. Note that the void keyword is added to the parameter list of each function definition to specify that the functions take no arguments. This change does not modify the output of the program; however, it does simplify the corresponding assembly.

#include <stdio.h>

int assign(void) {
    int y = 40;
    return y;

int adder(void) {
    int a;
    return a + 2;

int main(void) {
    int x;
    x = adder();
    printf("x is: %d\n", x);
    return 0;

We compile this code with the command gcc -o prog prog.c and use objdump -d to view the underlying assembly. The latter command outputs a pretty big file that contains a lot of information that we don’t need. Use less and the search functionality to extract the adder(), assign(), and main() functions:

0000000000400526 <assign>:
  400526:       55                      push   %rbp
  400527:       48 89 e5                mov    %rsp,%rbp
  40052a:       c7 45 fc 28 00 00 00    movl   $0x28,-0x4(%rbp)
  400531:       8b 45 fc                mov    -0x4(%rbp),%eax
  400534:       5d                      pop    %rbp
  400535:       c3                      retq

0000000000400536 <adder>:
  400536:       55                      push   %rbp
  400537:       48 89 e5                mov    %rsp,%rbp
  40053a:       8b 45 fc                mov    -0x4(%rbp),%eax
  40053d:       83 c0 02                add    $0x2,%eax
  400540:       5d                      pop    %rbp
  400541:       c3                      retq

0000000000400542 <main>:
  400542:       55                      push   %rbp
  400543:       48 89 e5                mov    %rsp,%rbp
  400546:       48 83 ec 10             sub    $0x10,%rsp
  40054a:       e8 e3 ff ff ff          callq  400526 <assign>
  40054f:       e8 d2 ff ff ff          callq  400536 <adder>
  400554:       89 45 fc                mov    %eax,-0x4(%rbp)
  400557:       8b 45 fc                mov    -0x4(%rbp),%eax
  40055a:       89 c6                   mov    %eax,%esi
  40055c:       bf 04 06 40 00          mov    $0x400604,%edi
  400561:       b8 00 00 00 00          mov    $0x0,%eax
  400566:       e8 95 fe ff ff          callq  400400 <printf@plt>
  40056b:       b8 00 00 00 00          mov    $0x0,%eax
  400570:       c9                      leaveq
  400571:       c3                      retq

Each function begins with a symbolic label that corresponds to its declared name in the program. For example, <main>: is the symbolic label for the main() function. The address of a function label is also the address of the first instruction in that function. To save space in the figures below, we truncate addresses to the lower 12 bits. So, program address 0x400542 is shown as 0x542.

7.5.3. Tracing through main

Figure 3 shows the execution stack immediately prior to the execution of main():

Figure 3. The initial state of the CPU registers and call stack prior to executing the main function.

Recall that the stack grows toward lower addresses. In this example, %rbp initially is stack address 0x830, and %rsp initially is stack address 0xd48. Both of these values are made up for this example.

Since the functions shown above utilize integer data, we highlight component registers %eax and %edi, which initially contain junk values. The arrow indicates the currently executing instruction. Initially, %rip contains address 0x542, which is the program memory address of the first line in the main() function.


The first instruction saves the current value of %rbp by pushing 0x830 onto the stack. Since the stack grows toward lower addresses, the stack pointer %rsp is updated to 0xd40, which is 8 bytes less than 0xd48. %rip advances to the next instruction in sequence.


The next instruction (mov %rsp, %rbp) updates the value of %rbp to be the same as %rsp. The frame pointer (%rbp) now points to the start of the stack frame for the main() function. %rip advances to the next instruction in sequence.


The sub instruction subtracts 0x10 from the address of our stack pointer, which essentially causes the stack to "grow" by 16 bytes, which we represent by showing two 8-byte locations on the stack. Register %rsp therefore has the new value of 0xd30. %rip advances to the next instruction in sequence.


The callq <assign> instruction pushes the value inside register %rip (which denotes the address of the next instruction to execute) onto the stack. Since the next instruction after callq <assign> has an address of 0x55f, that value is pushed onto the stack as the return address. Recall that the return address indicates the program address where execution should resume when program execution returns to main().

Next, the callq instruction moves the address of the assign function (0x526) into register %rip, signifying that program execution should continue into the callee function assign() and not the next instruction in main().


The first two instructions that execute in the assign() function are the usual book-keeping that every function performs. The first instruction pushes the value stored in %rbp (memory address 0xd40) onto the stack. Recall that this address points to the beginning of the stack frame for main(). %rip advances to the second instruction in assign().


The next instruction (mov %rsp, %rbp) updates %rbp to point to the top of the stack, marking the beginning of the stack frame for assign(). The instruction pointer (%rip) advances to the next instruction in the assign() function.


The mov instruction at address 0x52a moves the value $0x28 (or 40) onto the stack at address -0x4(%rbp), which is 4 bytes above the frame pointer. Recall that the frame pointer is commonly used to reference locations on the stack. However, keep in mind that this operation does not change the value of %rsp — the stack pointer still points to address 0xd20. Register %rip advances to the next instruction in the assign() function.


The mov instruction at address 0x531 places the value $0x28 into register %eax, which holds the return value of the function. %rip advances to the pop instruction in the assign() function.


At this point, the assign() function has almost completed execution. The next instruction that executes is pop %rbp, which restores %rbp to its previous value, or 0xd40. Since the pop instruction modifies the stack pointer, %rsp updates to 0xd28.


The last instruction in assign() is a retq instruction. When retq executes, the return address is popped off the stack into register %rip. In our example, %rip now advances to point to the callq instruction in main() at address 0x55f.

Some important things to notice at this juncture:

  • The stack pointer and frame pointer have been restored to their values prior to the call to assign(), reflecting that the stack frame for main() is once again the active frame.

  • The old values on the stack from the prior active stack frame are not removed. They still exist on the call stack.


Back in main(), the call to adder() overwrites the old return address on the stack with a new return address (0x554). This return address points to the next instruction to be executed after adder() returns, or mov %eax, -0x4(%rbp). Register %rip updates to point to the first instruction to execute in adder(), which is at address 0x536.


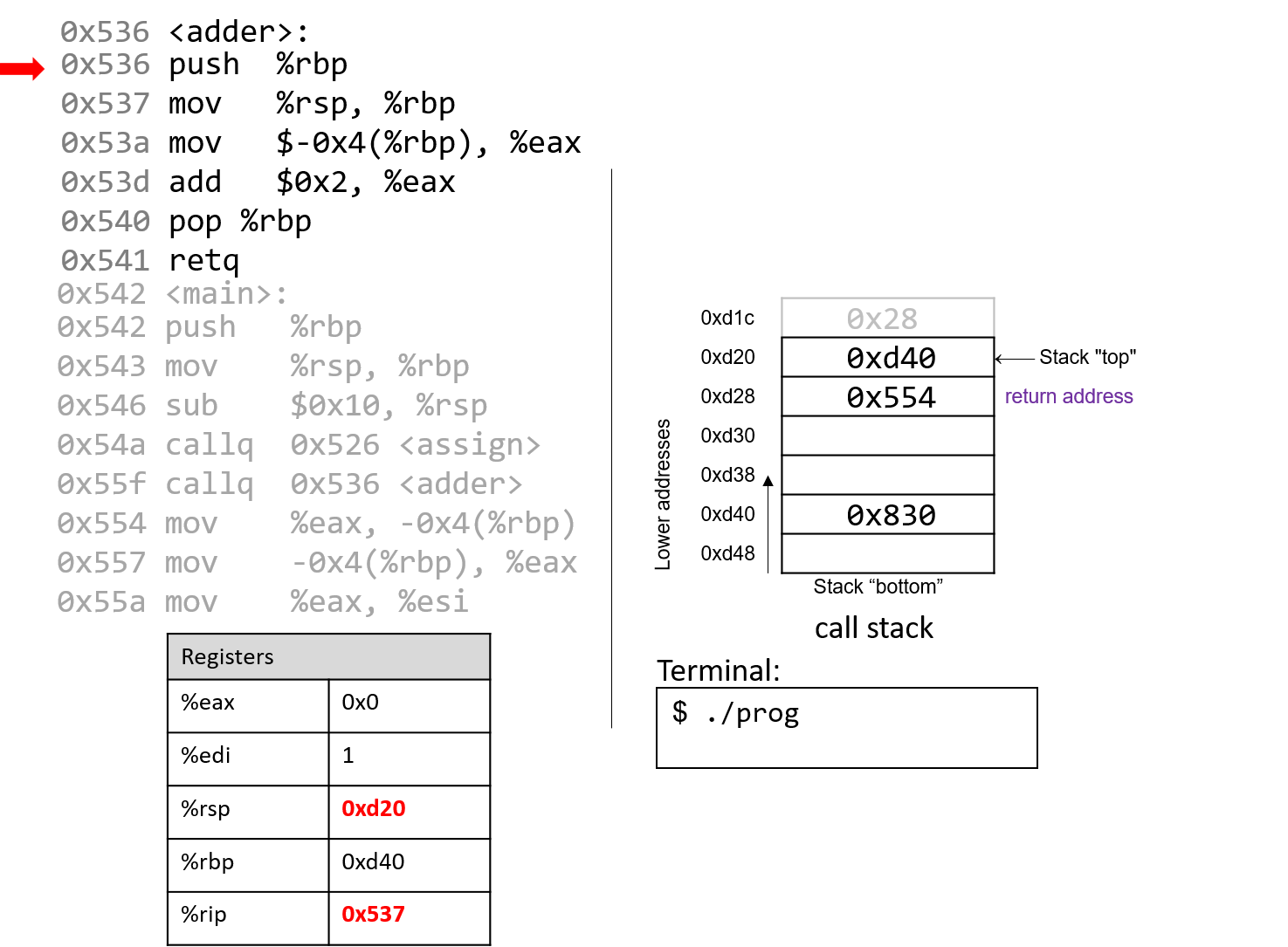

The first instruction in the adder() function saves the caller’s frame pointer (%rbp of main()) on the stack.


The next instruction updates %rbp with the current value of %rsp, or address 0xd20. Together, these last two instructions establish the beginning of the stack frame for adder().


Pay close attention to the next instruction that executes. Recall that $0x28 was placed on the stack during the call to assign(). The mov $-0x4(%rbp), %eax instruction moves an old value that is on the stack into register %eax! This would not have occurred if the programmer had initialized variable a in the adder() function.


The add instruction at address 0x53d adds 2 to register %eax. Recall that when a 32-bit integer is being returned, x86-64 utilizes component register %eax instead of %rax. Together the last two instructions are equivalent to the following code in adder():

int a;
return a + 2;


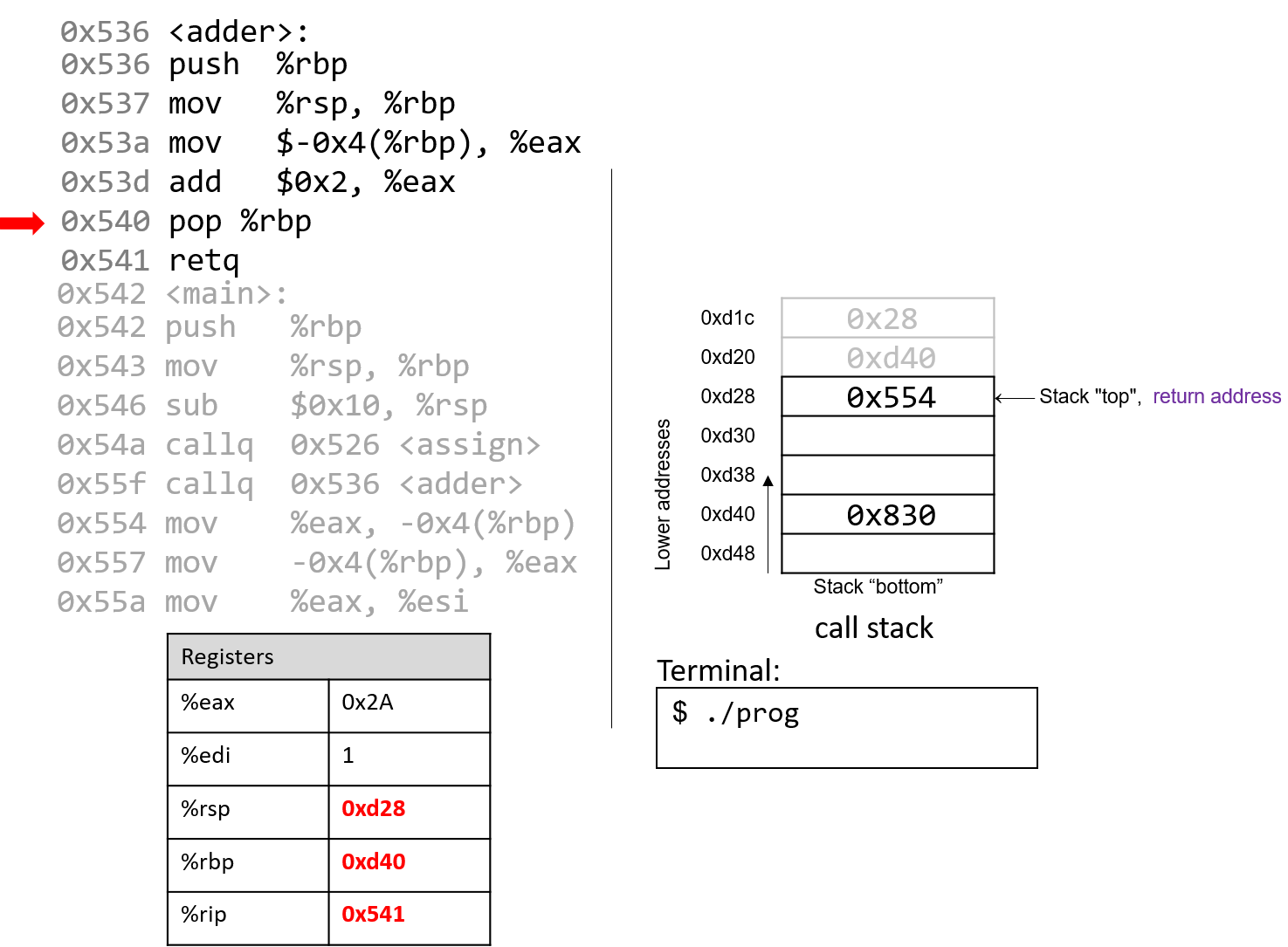

After pop executes, the frame pointer once again points to the beginning of the stack frame for main(), or address 0xd40. The stack pointer now contains the address 0xd28.


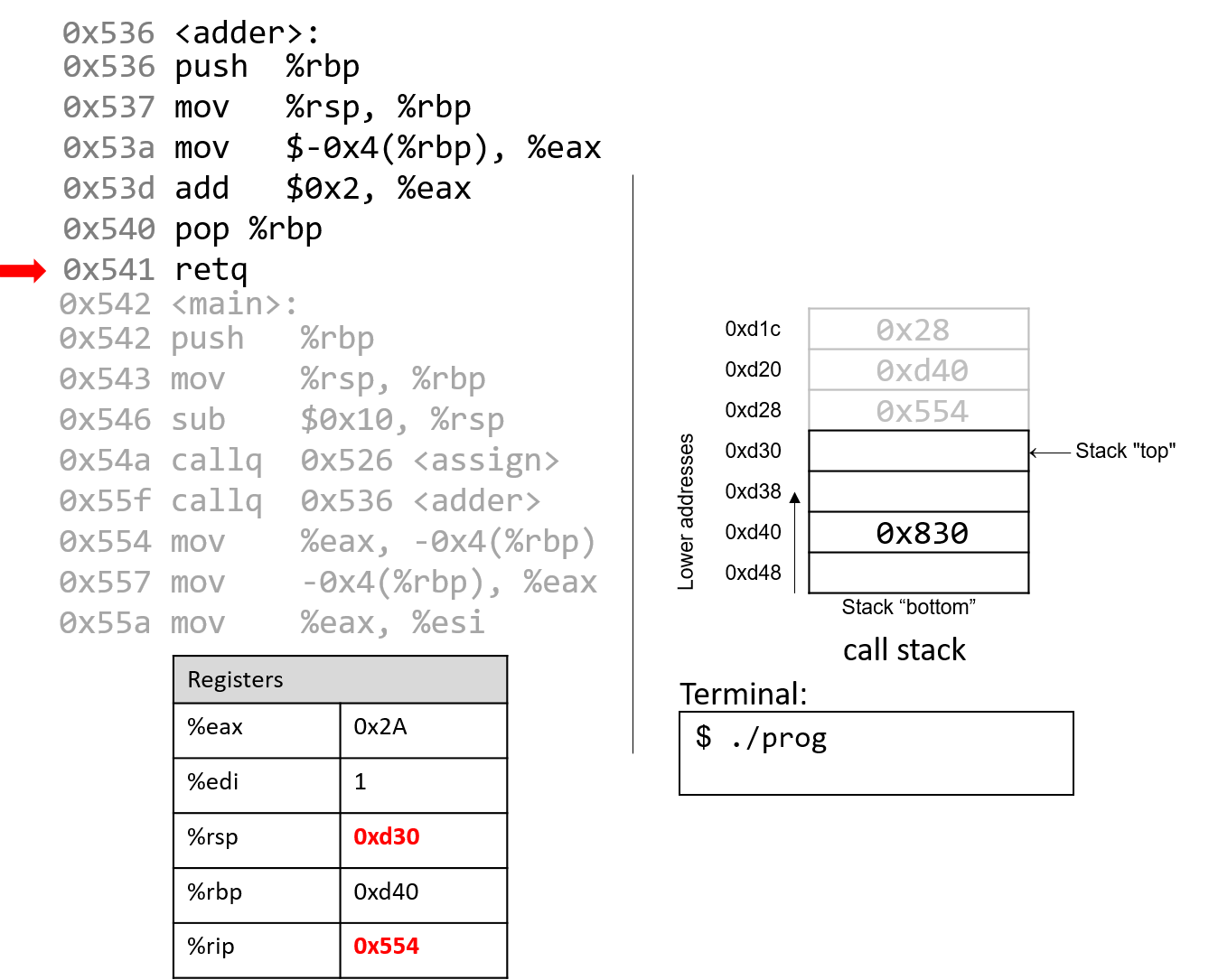

The execution of retq pops the return address off of the stack, restoring the instruction pointer back to 0x554, or the address of the next instruction to execute in main(). The address contained in %rsp is now 0xd30.


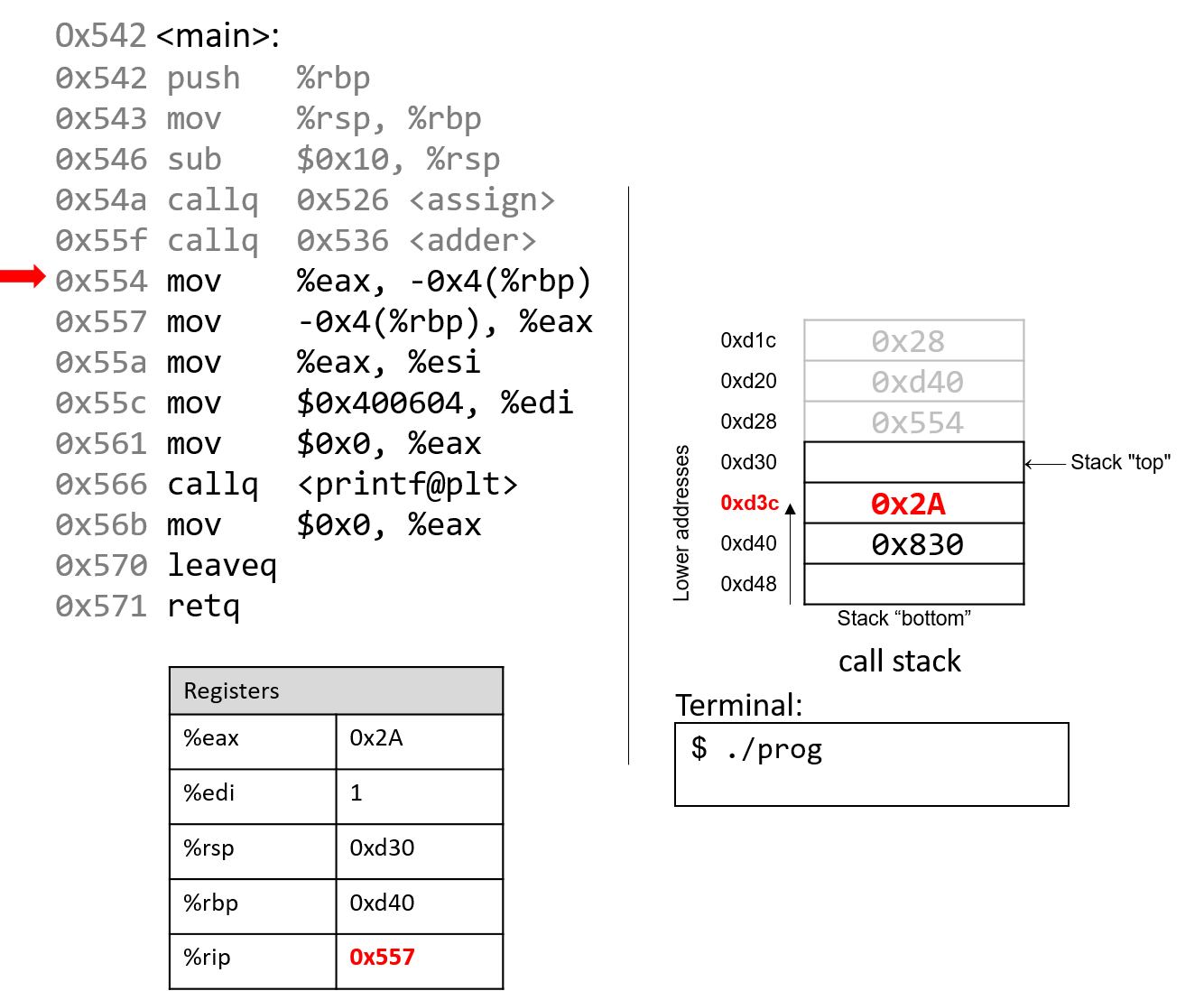

Back in main(), the mov %eax, -0x4(%rbp) instruction places the value in %eax at a location 4 bytes above %rbp, or at address 0xd3c. The next instruction replaces it back into register %eax.


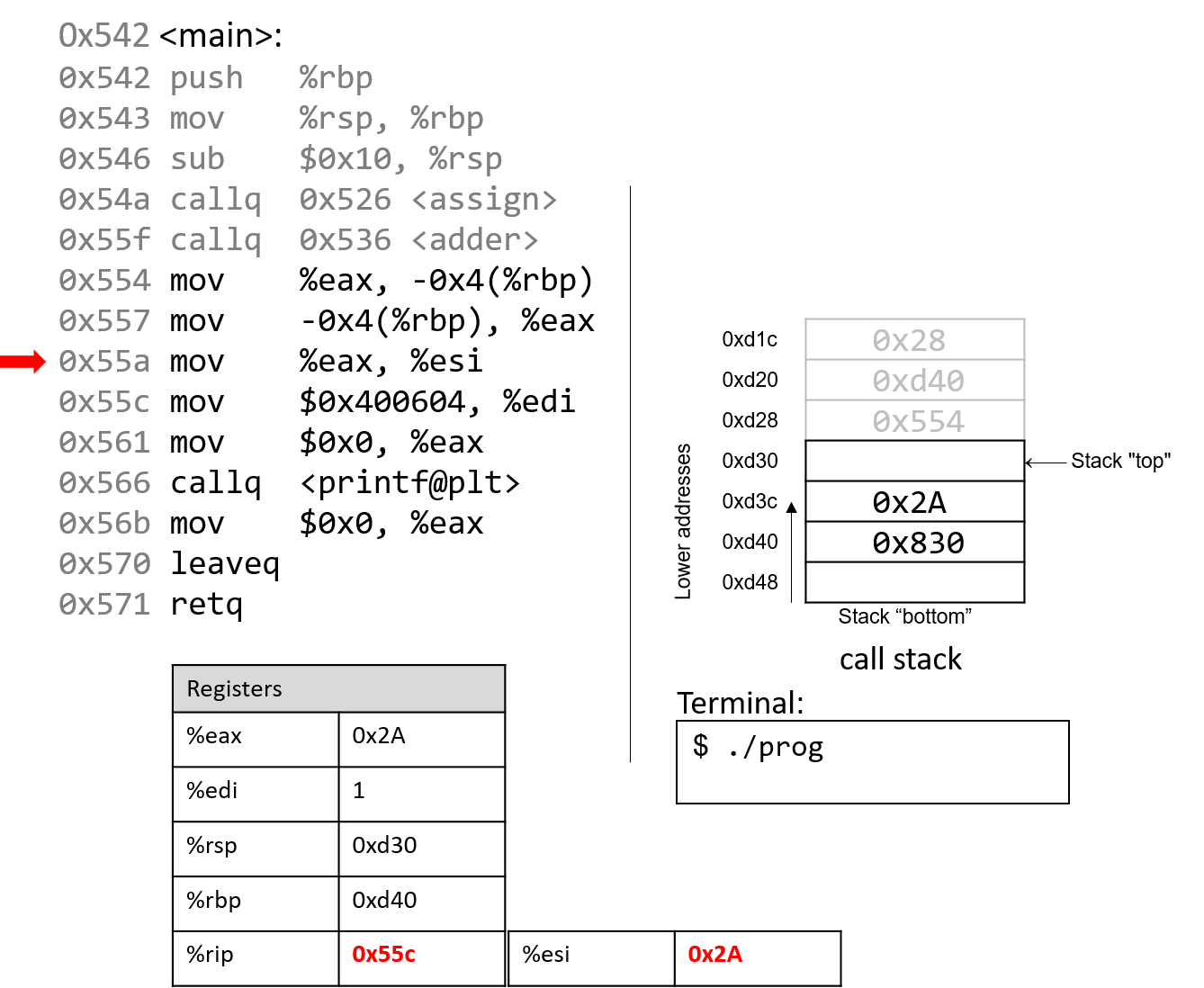

Skipping ahead a little, the mov instruction at address 0x55a copies the value in %eax (or 0x2A) to register %esi, which is the 32-bit component register associated with %rsi and typically stores the second parameter to a function.


The next instruction (mov $0x400604, %edi) copies a constant value (an address in code segment memory) to register %edi. Recall that register %edi is the 32-bit component register of %rdi, which typically stores the first parameter to a function. The code segment memory address 0x400604 is the base address of the string "x is %d\n".


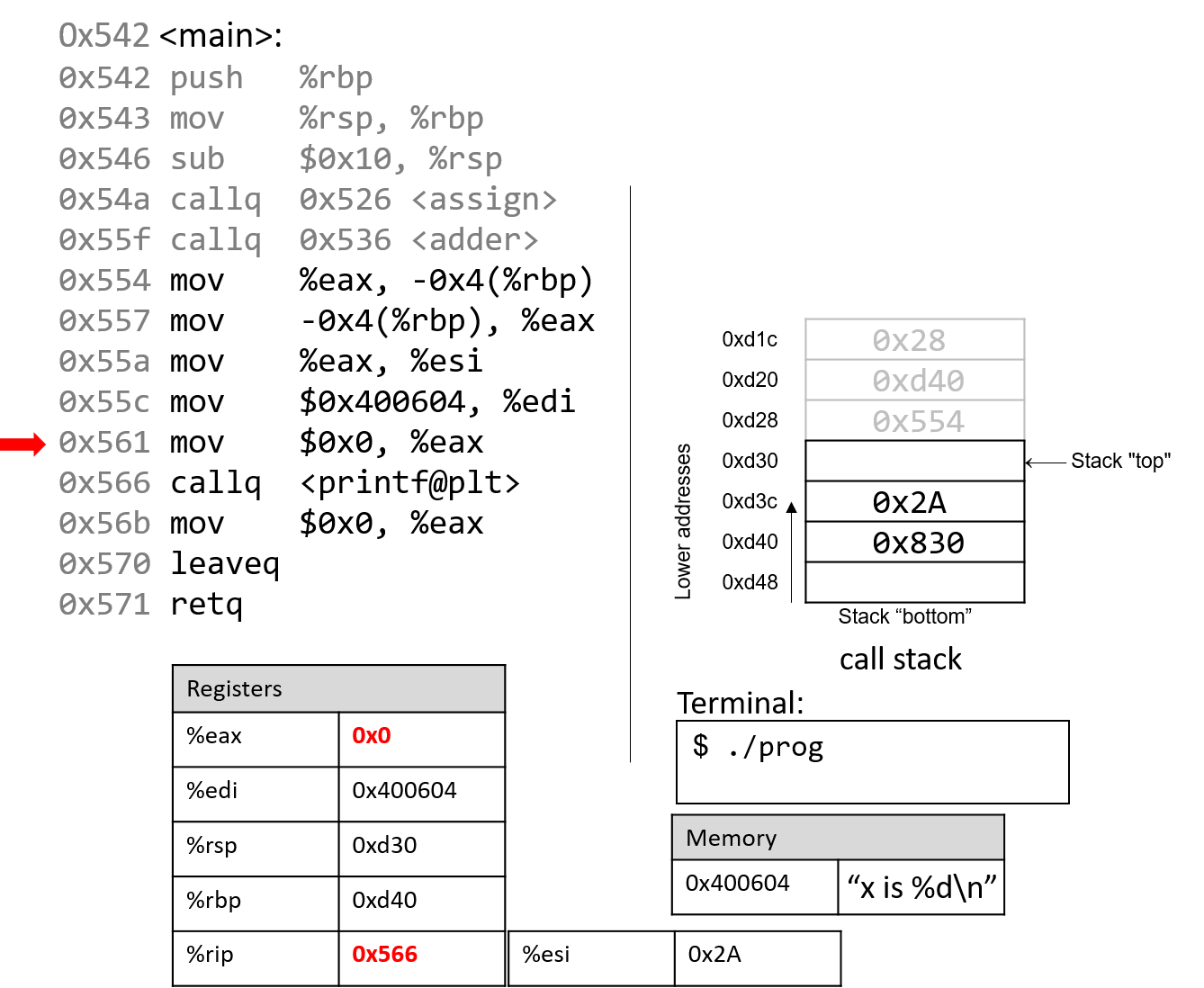

The next instruction resets register %eax with the value 0. The instruction pointer advances to the call to the printf() function (which is denoted with the label <printf@plt>).


The next instruction calls the printf() function. For the sake of brevity, we will not trace the printf() function, which is part of stdio.h. However, we know from the manual page (man -s3 printf) that printf() has the following format:

int printf(const char * format, ...)

In other words, the first argument is a pointer to a string specifying the format, and the second argument onwards specify the values that are used in that format. The instructions specified by addresses 0x55a - 0x566 correspond to the following line in the main() function:

printf("x is %d\n", x);

When the printf() function is called:

  • A return address specifying the instruction that executes after the call to printf() is pushed onto the stack.

  • The value of %rbp is pushed onto the stack, and %rbp is updated to point to the top of the stack, indicating the beginning of the stack frame for printf().

At some point, printf() references its arguments, which are string "x is %d\n" and value 0x2A. The first parameter is stored in component register %edi, and the second parameter is stored in component register %esi. The return address is located directly below %rbp at location %rbp+8.

For any function with n arguments, gcc places the first six arguments in registers as shown in Table 2, and the remaining arguments onto the stack below the return address.

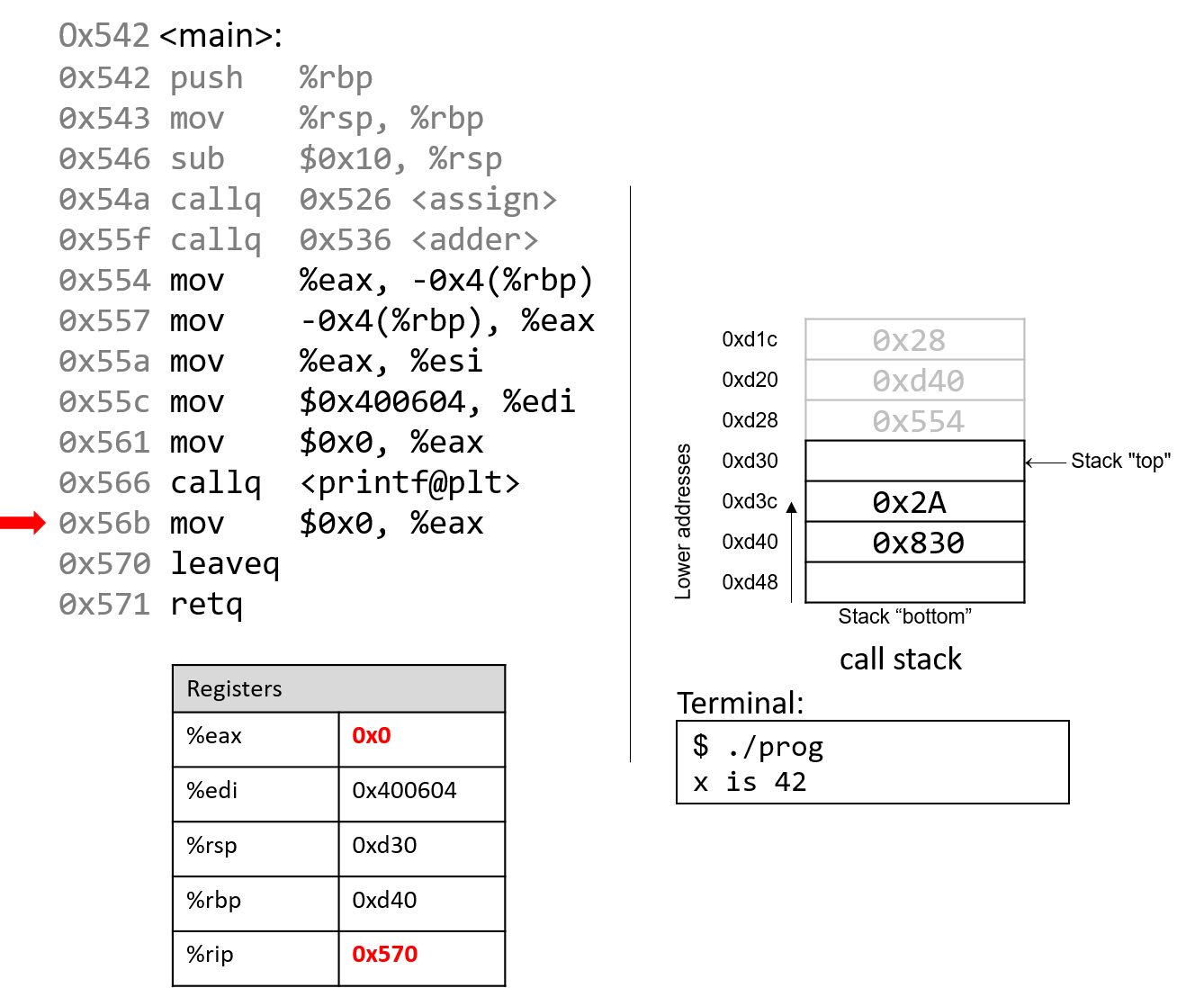

After the call to printf(), the value 0x2A is outputted to the user in integer format. Thus, the value 42 is printed to the screen!

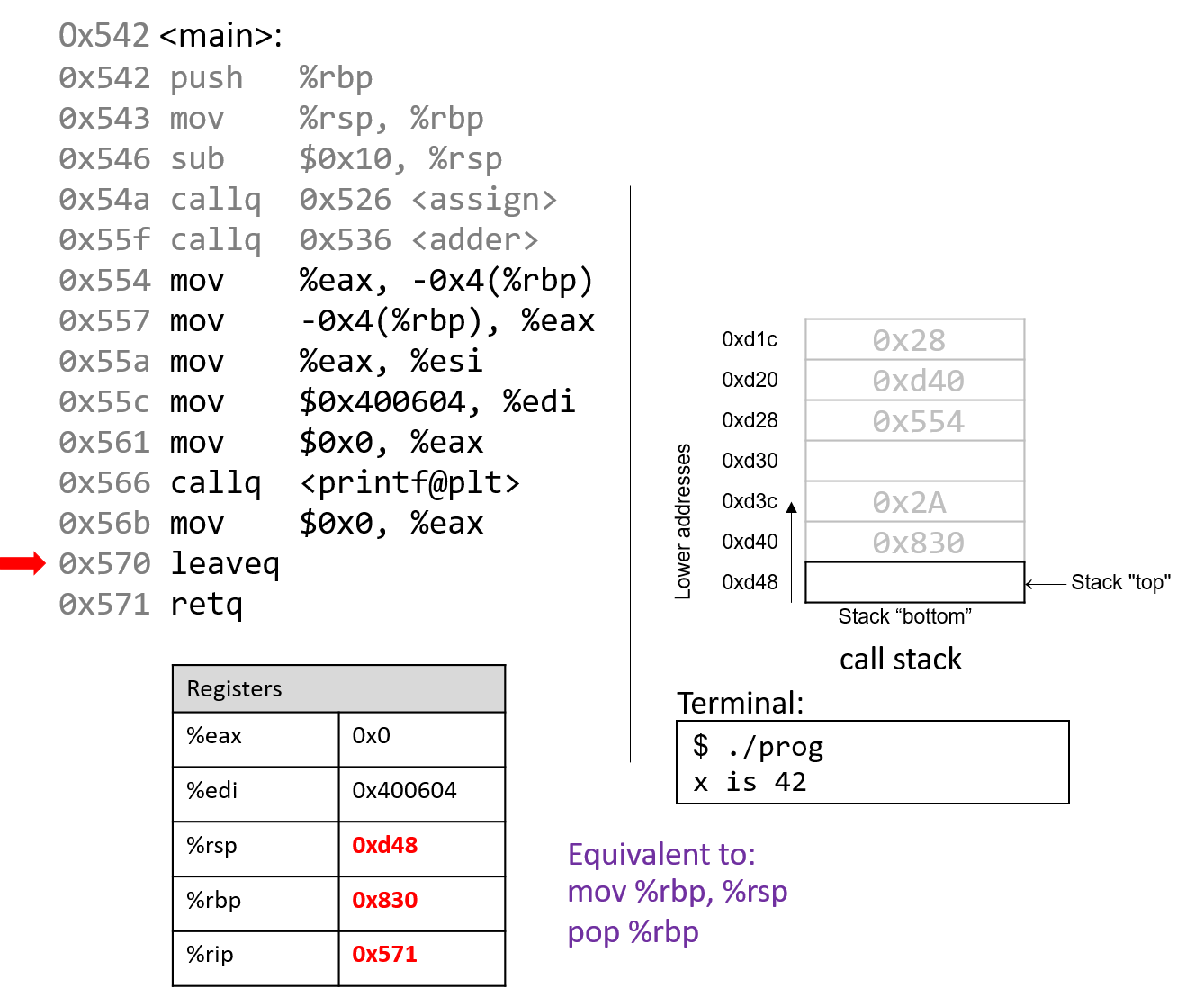

After the call to printf(), the last few instructions clean up the stack and prepare a clean exit from the main() function. First, the mov instruction at address 0x56b ensures that 0 is in the return register (since the last thing main() does is return 0).


The leaveq instruction prepares the stack for returning from the function call. Recall that leaveq is analogous to the following pair of instructions:

mov %rbp, %rsp
pop %rbp

In other words, the CPU overwrites the stack pointer with the frame pointer. In our example, the stack pointer is initially updated from 0xd30 to 0xd40. Next, the CPU executes pop %rbp, which takes the value located at 0xd40 (in our example, the address 0x830) and places it in %rbp. Once leaveq executes, the stack and frame pointers revert to their original values prior to the execution of main().

The last instruction that executes is retq. With 0x0 in the return register %eax, the program returns 0, indicating correct termination.

If you have carefully read through this section, you should understand why our program prints out the value 42. In essence, the program inadvertently uses old values on the stack to cause it to behave in a way that we didn’t expect. While this example was pretty harmless, we discuss in future sections how hackers have misused function calls to make programs misbehave in truly malicious ways.
